ACER E-mill 3VS II Milling Machine, 9x49 Inch
ACER E-mill 3VS II Milling Machine, 9x49 Inch
SKU:MIL-175276
Powerful ACER E-mill 3VS II Milling Machine with 3 HP spindle motor, variable speeds, and precise ground ram ways for industrial and government use.
Regular price
$13,499.99
Regular price
Sale price
$13,499.99
Unit price
per
Initiate Order
ACER E-mill 3VS II Milling Machine, 9x49 Inch
$13,499.99
Quantity: 1
Claim Your Seller Account
ACER E-mill 3VS II Milling Machine, 9x49 Inch
$13,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

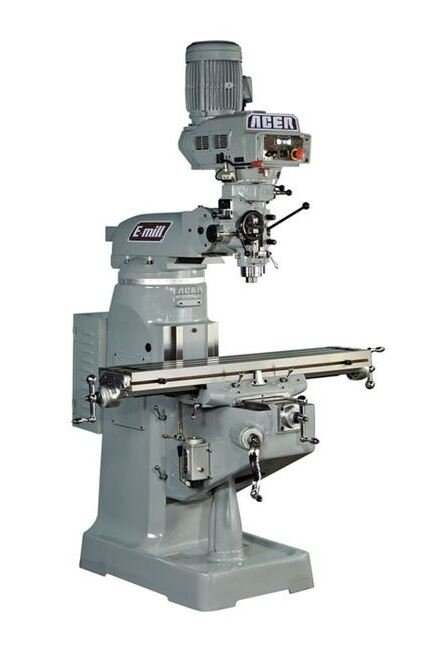

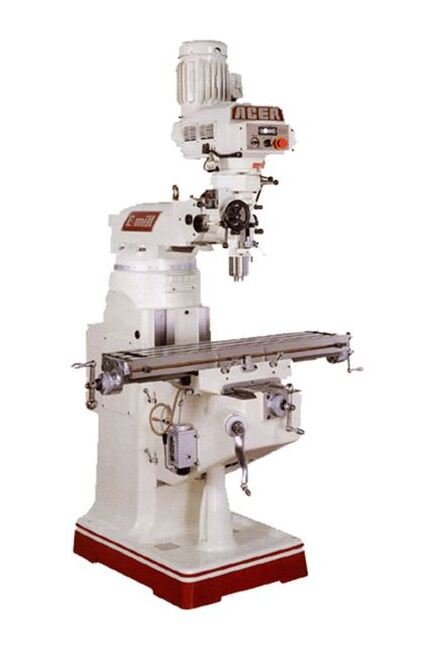

The ACER E-mill 3VS II Milling Machine offers precision and power to meet the demands of both industrial and government buyers. Featuring a 3 HP spindle inverter motor, variable spindle speeds from 60 to 4,500 RPM, and precision ground ram ways within 0.0004" accuracy, this machine ensures optimal performance. The protective outer case for the inverter keeps chips and coolant out, enhancing durability. Additionally, compliance with Federal/DoD procurement standards and FAR compliance factors makes it a reliable choice for institutional buyers.
Product Specifications
Features Features
Fan cooling system dissipates heat efficiently3 HP spindle inverter motorPrecision ground ram ways within 0.0004" accuracyTop brand "TOSHIBA" or equivalent A.C. frequency inverter driveProtective outer case for inverter keeps chips and coolant out!Turn-in the hand handleAutomotive painting process ensures life-long appearanceDish-in coolant base3 HP variable speed from 60 to 4,500 RPMOne piece quill pinion & shaftExtra oiler lubricates the quill in its housingTable surface is HRC 52°All lead screws are ground finishedX, Y axes & knee hardened & ground dovetail ways to HRC 52°
Technical Specs Brands
ACER
Technical Specs Cross Travel Y Axis
12 in
Technical Specs Head Moves Right To Left
90 º
Technical Specs Longitudinal Travel For 10 X 50 Inch In Working
28 in | 34 in
Technical Specs Main Motor
3 hp
Technical Specs Model
E-mill 3VS | E-mill 3VS II
Technical Specs Power Quill Feeds
0.0015 in/rev | 0.003 in/rev | 0.006 in/rev
Technical Specs Quill Travel
5 in
Technical Specs Ram Travel
12 in
Technical Specs Spindle Drive
Variable
Technical Specs Spindle Speeds
60 to 4500 rpm
Technical Specs Spindle Taper
R8
Technical Specs T Slot Number And Size
3 in | 5/8 in
Technical Specs Vertical Knee Travel
16 in
Technical Specs Weight
2380 lb | 2430 lb
Technical Specs Working Table Longitudinal Travel
28 in | 34 in
