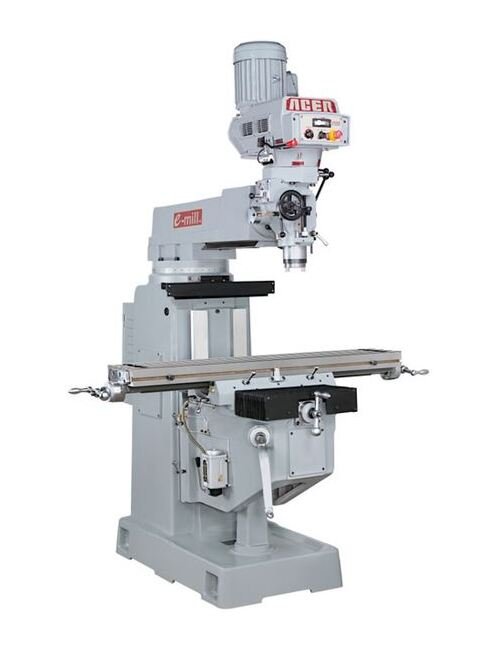

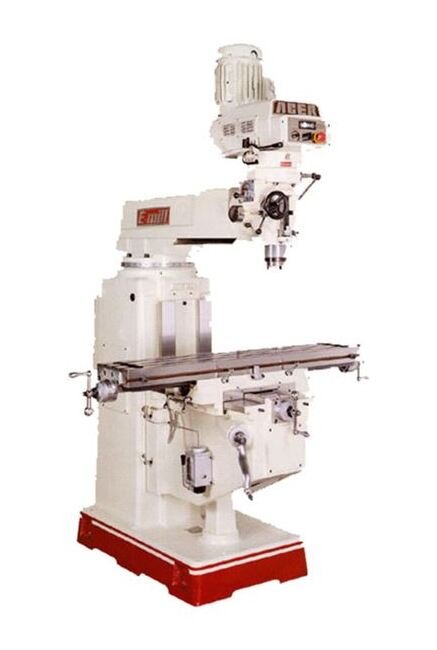

ACER E-mill 5VK Milling Machine - 10 x 50 Inch, Grey
ACER E-mill 5VK Milling Machine - 10 x 50 Inch, Grey
SKU:MIL-92ad11
Powerful ACER E-mill 5VK Milling Machine for precise machining, 5 HP spindle, and industry compliance.
Regular price
$22,500.00
Regular price
Sale price
$22,500.00
Unit price
per
Initiate Order
ACER E-mill 5VK Milling Machine - 10 x 50 Inch, Grey
$22,500.00
Quantity: 1
Claim Your Seller Account
ACER E-mill 5VK Milling Machine - 10 x 50 Inch, Grey
$22,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ACER E-mill 5VK Milling Machine is a powerhouse designed for precision and efficiency. Engineered with a 5 HP spindle inverter motor, hand-scraped contact surfaces, and MEEHANITE casting, it ensures durability and accuracy. Featuring a 5 HP variable speed spindle, NST #40 quill, and hardened & ground axes, this machine offers optimal performance. With compliance to industry standards like FAR, DLA, and GSA requirements, it's a reliable choice for government and institutional procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Fan cooling system dissipates heat efficiently5 HP spindle inverter motorHand scraped contact surface between ram and headMEEHANITE castingTop brand Vector-type AC frequency inverter driveTurn-in the hand handleProtective automotive paint ensures life-long appearanceDish-in coolant base5 HP variable speed from 50 to 4,500 RPMOne piece quill pinion & shaft4" quill diameter and NST #40; spindlePrecision hand scraped contact surfaces between turret and columnSquare ways of Y & Z axes are hardened & ground. Table surface is HRC 52°All lead screws are ground finishedChrome plated chip guards
Technical Specs Brands
ACER
Technical Specs Cross Travel Y Axis
17 in
Technical Specs Head Moves Right To Left
90 º
Technical Specs Longitudinal Travel For 10 X 50 Inch In Working
32 1/2 in
Technical Specs Main Motor
5 hp
Technical Specs Model
5VK
Technical Specs Power Quill Feeds
0.0015 in/rev | 0.003 in/rev | 0.006 in/rev
Technical Specs Quill Diameter Chromed
4 in
Technical Specs Quill Travel
5 in
Technical Specs Ram Travel
20 in
Technical Specs Spindle Drive
Variable
Technical Specs Spindle Speeds
50 to 4500 rpm
Technical Specs Spindle Taper
N.S.T. #40;
Technical Specs T Slot Number And Size
3 in | 5/8 in
Technical Specs Vertical Knee Travel
19 in
Technical Specs Weight
3750 lb
Technical Specs Working Table Longitudinal Travel
32-1/2 in
