Acetal Closed Top Link Chain - 50mm Right Hand Pusher Size
Acetal Closed Top Link Chain - 50mm Right Hand Pusher Size
SKU:CHA-17d846
Smooth and safe Acetal Closed Top Link Chain with internal barrel rollers for reduced chain pull and limited conveyor speeds. Ideal for pack-off applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Acetal Closed Top Link Chain - 50mm Right Hand Pusher Size
$129.99
Quantity: 1
Claim Your Seller Account
Acetal Closed Top Link Chain - 50mm Right Hand Pusher Size
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Acetal Closed Top Link Chain features internal barrel rollers, reducing chain pull and ensuring smooth, safe operation. With a pitch size of 25mm and a moving direction of right hand, this chain is ideal for pack-off applications. It offers a closed carrying surface, limiting conveyor speeds to 70 ft/min or slower for enhanced safety. Vertical bends are permissible, while horizontal bends are not recommended for this design.
Product Specifications
Additional Information Additional Information
Sometimes you need a conveyor chain with a smooth, closed carrying surface.
Chain Options Chain Options

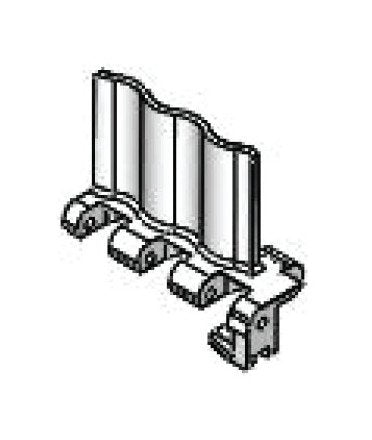

PlainMoving Side GuidePusher CleatScoopPusher with Moving Side GuideScoop with Moving Side Guide
Options Options

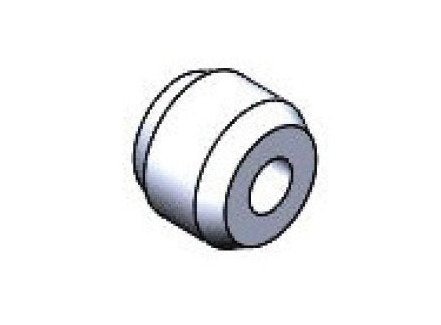

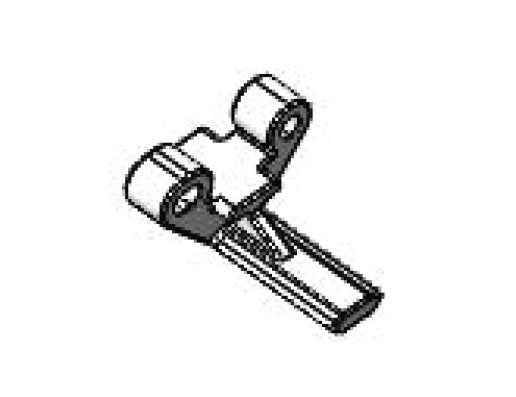

Item #: DS0060AItem Name: Internal Acetal Barrel RollerItem #: DS9964-CT-01Item Name: Return Chain Acetal Support Link
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Material Options
Acetal
Specifications Moving Direction
Right Hand
Specifications Pitch Size
0.98 in | 25 mm
Specifications Pusher Size
50 mm
Specifications Safety
Smooth, closed carrying surface with no open areas offering a measure of safety perfect for operator stations.
