ACME Split Clamp-Type Threaded Shaft Collar
ACME Split Clamp-Type Threaded Shaft Collar
SKU:ROU-c36734
Precision machined ACME Split Clamp-Type Shaft Collar for secure and adjustable shaft positioning. Superior holding power and easy to disassemble.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
ACME Split Clamp-Type Threaded Shaft Collar
$24.99
Quantity: 1
Claim Your Seller Account
ACME Split Clamp-Type Threaded Shaft Collar
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

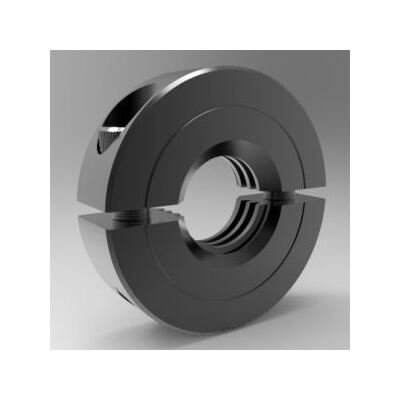

The ACME Split Clamp-Type Threaded Shaft Collar is designed to fit standard ACME threaded shafts, offering superior holding power over set-screw collars. Precision machined from Steel Alloy 1215 with a Black Oxide finish, this two-piece collar can be easily adjusted, disassembled, and repositioned on the shaft. Ideal for stroke limiting, stops, and tensioning applications, this product ensures high clamping power and precise positioning. Made in the USA and RoHS2 compliant, it features a Right Hand ACME thread, a Threaded Bore Size of 1 3/4-4, an Outside Diameter of 3.250 in, and a Width of 1.000 in.
Product Specifications
Dimensional Attributes Outside Diameter
3.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
3/8-24 x 1
Dimensional Attributes Threaded Bore Size
1 3/4-4
Dimensional Attributes Width
1.000 in
Specifications Alloy
1215
Specifications Approximate Weight
1.65 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
10L112F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Right Hand Acme
Specifications Upc Code
662786013515
