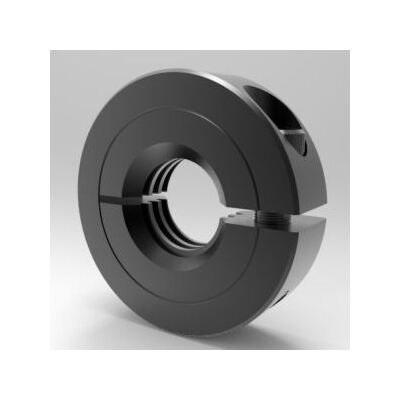

ACME Threaded One-Piece Split Clamp-Type Shaft Collar
ACME Threaded One-Piece Split Clamp-Type Shaft Collar
SKU:THR-5a6fc7
Precision machined steel shaft collar with superior holding power for ACME threaded shafts. Ideal for stroke limiting and height adjustment applications.
Regular price
$26.98
Regular price
Sale price
$26.98
Unit price
per
Initiate Order
ACME Threaded One-Piece Split Clamp-Type Shaft Collar
$26.98
Quantity: 1
Claim Your Seller Account
ACME Threaded One-Piece Split Clamp-Type Shaft Collar
$26.98
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ACME Threaded One-Piece Split Clamp-Type Shaft Collar is specifically designed to fit standard ACME threaded shafts, offering superior holding power over traditional set-screw collars. Precision machined from durable steel with a black oxide finish, this collar ensures a secure and non-marring grip. Ideal for stroke limiting, stops, and height adjustment applications, it features a right-hand Acme thread, recessed screw, and high clamping power. Made in the USA, this collar is RoHS2 and REACH compliant, meeting stringent industry standards for quality and performance.
Product Specifications
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
5/16-24 x 1
Dimensional Attributes Threaded Bore Size
1-5
Dimensional Attributes Width
0.625 in
Specifications Alloy
1215
Specifications Approximate Weight
0.53 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
26.98 USD
Specifications Material
Steel
Specifications Part Number
10L100
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Right Hand Acme
Specifications Upc Code
662786013164
