ACME Threaded One-Piece Split Clamp-Type Shaft Collar

Name: ACME Threaded One-Piece Split Clamp-Type Shaft Collar
Brand: Stafford Manufacturing Corp.
SKU: THR-028a15
Price: 25.99 USD
Availability: OutOfStock

SKU:THR-028a15

Precision machined ACME Threaded Shaft Collar for superior clamping power on standard ACME threaded shafts. Non-marring, easy to adjust, with black oxide finish.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

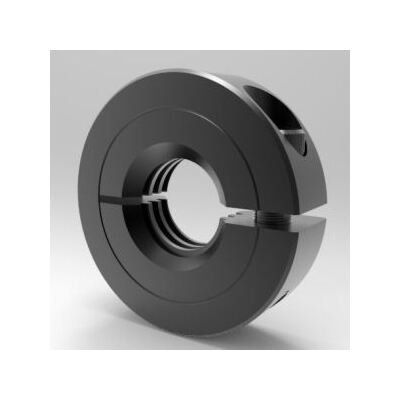

The ACME Threaded One-Piece Split Clamp-Type Shaft Collar is designed to fit standard ACME threaded shafts, offering superior holding power over set-screw type collars. Ideal for applications such as stroke limiting, stops, and height/spring tensioning, this precision machined collar is non-marring and easy to adjust, providing high clamping power. Made from durable steel with a black oxide finish, this collar comes in right-hand Acme type. With a threaded bore size of 1 3/4-4, outside diameter of 3.250 in, and width of 1.000 in, this collar includes recessed screw features for added convenience. UPC code: 662786013218.

Product Specifications

Dimensional Attributes Outside Diameter

3.250 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

3/8-24 x 1

Dimensional Attributes Threaded Bore Size

1 3/4-4

Dimensional Attributes Width

1.000 in

Specifications Alloy

1215

Specifications Approximate Weight

1.63 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

10L112

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Right Hand Acme

Specifications Upc Code

662786013218

ACME Threaded One-Piece Split Clamp-Type Shaft Collar
