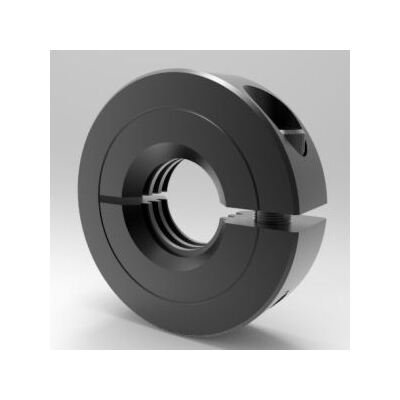

ACME Threaded Shaft Collar Clamp-Type (Steel) - 1 3/8-4 Thread

Name: ACME Threaded Shaft Collar Clamp-Type (Steel) - 1 3/8-4 Thread
Brand: Stafford Manufacturing Corp.
SKU: THR-549760
Price: 24.99 USD
Availability: OutOfStock

SKU:THR-549760

High-clamping power ACME Threaded Clamp-Type Shaft Collar in 1215 alloy steel with 1 3/8-4 thread size. Ideal for precise adjustments & applications. RoHS2 & REACH Compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The ACME Threaded Shaft Collar Clamp-Type is designed to fit standard ACME threaded shafts, offering superior holding power compared to set-screw collars. Precision machined from 1215 alloy steel with a black oxide finish, this one-piece split clamp-type collar features a threaded bore size of 1 3/8-4, an outside diameter of 2.625 inches, and a width of 0.750 inches. It is non-marring, easy to adjust, and includes a recessed screw. Ideal for stroke limiting, stops, and height/spring tensioning applications. RoHS2 and REACH compliant, made in the USA.

Product Specifications

Dimensional Attributes Outside Diameter

2.625 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

5/16-24 x 1

Dimensional Attributes Threaded Bore Size

1 3/8-4

Dimensional Attributes Width

0.750 in

Specifications Alloy

1215

Specifications Approximate Weight

0.82 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

10L106

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Right Hand Acme

Specifications Upc Code

662786013195
