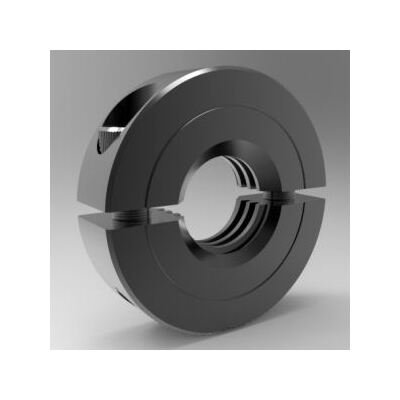

ACME Threaded Shaft Collar Two-Piece Split Clamp-Type

Name: ACME Threaded Shaft Collar Two-Piece Split Clamp-Type
Brand: Stafford Manufacturing Corp.
SKU: THR-4fcb8b
Price: 29.99 USD
Availability: OutOfStock

SKU:THR-4fcb8b

Precision engineered ACME Threaded Shaft Collar for superior holding power and versatile positioning on shafts. RoHS2 and REACH compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The ACME Threaded Shaft Collar Two-Piece Split Clamp-Type is engineered to fit standard ACME threaded shafts, offering superior holding power over set-screw collars. Perfect for stroke limiting, stops, and tensioning applications, its precision machined steel construction provides durability and high clamping power. This two-piece design allows easy disassembly and adjustment anywhere on the shaft while being non-marring. With a black oxide finish, recessed screw feature, and left-hand Acme threading, this collar is RoHS2 and REACH compliant, meeting strict industry standards for quality and performance.

Product Specifications

Dimensional Attributes Outside Diameter

3.250 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

3/8-24 x 1

Dimensional Attributes Threaded Bore Size

1 3/4-4

Dimensional Attributes Width

1.000 in

Specifications Alloy

1215

Specifications Approximate Weight

1.65 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

11L112F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Left Hand Acme

Specifications Upc Code

662786013669

ACME Threaded Shaft Collar Two-Piece Split Clamp-Type
