ACME Threaded Shaft Collars Split Clamp-Type for Standard ACME Threaded Shafts

Name: ACME Threaded Shaft Collars Split Clamp-Type for Standard ACME Threaded Shafts
Brand: Stafford Manufacturing Corp.
SKU: THR-b281c7
Price: 14.99 USD
Availability: OutOfStock

SKU:THR-b281c7

Precision machined ACME Threaded Shaft Collars for superior holding power and easy adjustment on standard ACME threaded shafts. Made from black oxide-coated 1215 steel in the USA.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

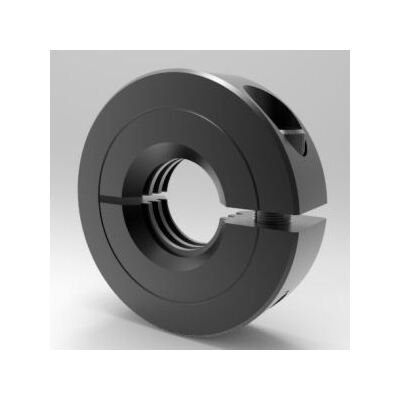

The ACME Threaded Shaft Collars Split Clamp-Type are precision machined from durable black oxide-coated 1215 steel, ensuring superior holding power over traditional set-screw collars. Designed for standard ACME threaded shafts in both left and right-hand versions, these collars are ideal for applications requiring stroke limiting, stops, height adjustment, and spring tensioning. Featuring a threaded bore size of 5/8-8, an outside diameter of 1.625 inches, and a width of 0.500 inches, these collars offer precision adjustment with a recessed screw design and alloy steel screw material for enhanced durability. Made in the USA, RoHS2 and REACH compliant, these shaft collars provide reliability and performance in various industrial settings.

Product Specifications

Dimensional Attributes Outside Diameter

1.625 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Threaded Bore Size

5/8-8

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.23 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

11L010

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Left Hand Acme

Specifications Upc Code

662786013287
