ACME Threaded Shaft Collars - Steel Split Clamp-Type (1 3/4-4 Thread)

Name: ACME Threaded Shaft Collars - Steel Split Clamp-Type (1 3/4-4 Thread)
Brand: Stafford Manufacturing Corp.
SKU: ROU-028a15
Price: 29.99 USD
Availability: OutOfStock

SKU:ROU-028a15

Precision-machined ACME Threaded Shaft Collars for secure and adjustable shaft connections. Steel construction with high clamping power.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

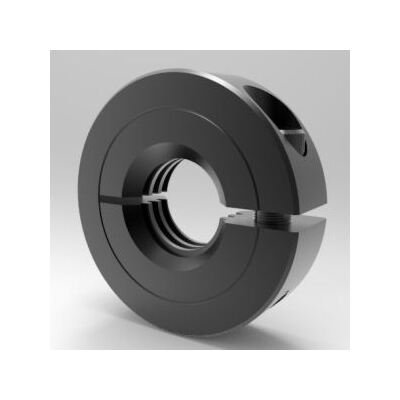

The ACME Threaded Shaft Collars are precision-machined one-piece split clamp-type collars designed to fit standard ACME threaded shafts. Available in a right hand version, these collars provide superior holding power over set-screw types, making them ideal for applications such as stroke limiting, stops, and height/spring tensioning. Made from high-quality steel with a black oxide finish, these collars offer non-marring, easy adjustment, and high clamping power. With a threaded bore size of 1 3/4-4, outside diameter of 3.250 in, and width of 1.000 in, these collars ensure secure and precise shaft connections.

Product Specifications

Dimensional Attributes Outside Diameter

3.250 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

3/8-24 x 1

Dimensional Attributes Threaded Bore Size

1 3/4-4

Dimensional Attributes Width

1.000 in

Specifications Alloy

1215

Specifications Approximate Weight

1.63 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

10L112

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Right Hand Acme

Specifications Upc Code

662786013218
