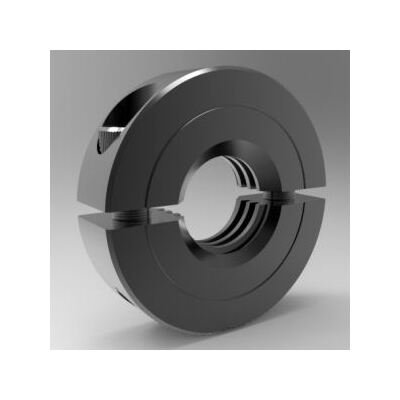

ACME Threaded Split Clamp-Type Shaft Collar
ACME Threaded Split Clamp-Type Shaft Collar
SKU:THR-f83653
Precision-engineered ACME Threaded Shaft Collar for secure and flexible shaft placement. Made from quality steel with black oxide finish. RoHS2 and REACH compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ACME Threaded Split Clamp-Type Shaft Collar
$29.99
Quantity: 1
Claim Your Seller Account
ACME Threaded Split Clamp-Type Shaft Collar
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ACME Threaded Split Clamp-Type Shaft Collar is a precision-engineered solution for standard ACME threaded shafts, offering superior holding power over traditional set-screw collars. This two-piece design allows for flexible placement on the shaft, ideal for applications like stroke limiting, stops, and tensioning. Made from high-quality steel with a black oxide finish, it ensures durability and easy adjustment. With dimensions including a threaded bore size of 2 1/2-3 and an outside diameter of 4.000 inches, this collar provides secure clamping with a recessed screw feature. Proudly made in the USA, this collar is RoHS2 and REACH compliant.
Product Specifications
Dimensional Attributes Outside Diameter
4.000 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
3/8-24 x 1
Dimensional Attributes Threaded Bore Size
2 1/2-3
Dimensional Attributes Width
1.000 in
Specifications Alloy
1215
Specifications Approximate Weight
2.17 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
11L208F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Left Hand Acme
Specifications Upc Code
662786013690
