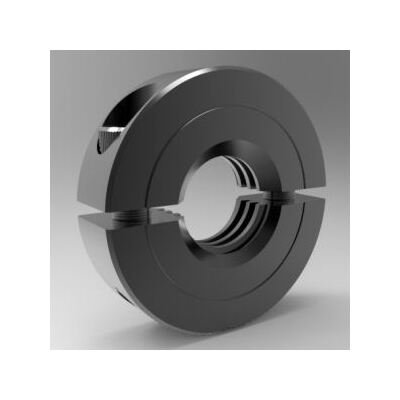

ACME Threaded Two-Piece Split Clamp Shaft Collar - Left Hand, Black Oxide Finish

Name: ACME Threaded Two-Piece Split Clamp Shaft Collar - Left Hand, Black Oxide Finish
Brand: Stafford Manufacturing Corp.
SKU: THR-52e220
Price: 12.99 USD
Availability: OutOfStock

SKU:THR-52e220

Precision machined ACME Threaded Shaft Collar with superior holding power, 2-piece design for versatility and precision. Left-hand thread, Black Oxide finish.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The ACME Threaded Two-Piece Split Clamp Shaft Collar is designed to fit standard ACME threaded shafts, offering superior holding power over set-screw type collars. This left-hand version features a Black Oxide finish and is precision machined from Alloy 1215 steel. With a threaded bore size of 1/2-10 and high clamping power, this collar is ideal for applications such as stroke limiting, stops, and tensioning. The 2-piece clamp-type design allows for easy disassembly and adjustment, providing versatility and durability for various industrial uses.

Product Specifications

Dimensional Attributes Outside Diameter

1.313 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

10-32 x 5/8

Dimensional Attributes Threaded Bore Size

1/2-10

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.15 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

11L008F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Left Hand Acme

Specifications Upc Code

662786013577
