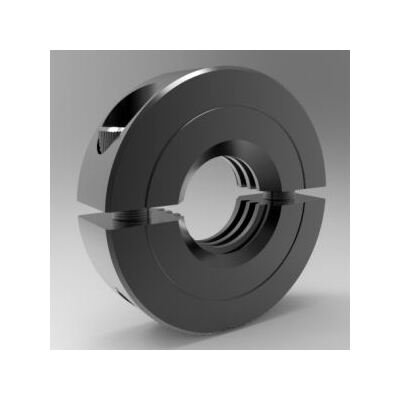

ACME Two-Piece Split Clamp-Type Threaded Shaft Collar

Name: ACME Two-Piece Split Clamp-Type Threaded Shaft Collar
Brand: Stafford Manufacturing Corp.
SKU: THR-1593bb
Price: 34.99 USD
Availability: OutOfStock

SKU:THR-1593bb

Precision-machined ACME Threaded Shaft Collar for flexible shaft positioning with superior holding power. RoHS2 and REACH compliant.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The ACME Two-Piece Split Clamp-Type Threaded Shaft Collar is designed to fit standard ACME threaded shafts, offering superior holding power over set-screw collars. Ideal for stroke limiting, stops, and tensioning applications, this precision-machined collar can be easily adjusted and disassembled for flexible positioning on the shaft. Made of durable steel with a black oxide finish, it features a right hand ACME thread and boasts high clamping power. Made in the USA, RoHS2 and REACH compliant.

Product Specifications

Dimensional Attributes Outside Diameter

4.000 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

3/8-24 x 1

Dimensional Attributes Threaded Bore Size

2 1/2-3

Dimensional Attributes Width

1.000 in

Specifications Alloy

1215

Specifications Approximate Weight

2.17 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

10L208F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Right Hand Acme

Specifications Upc Code

662786013546
