Acrolab A520 Probe Style Plastic Thermocouples & RTD's
Acrolab A520 Probe Style Plastic Thermocouples & RTD's
SKU:THE-d9182e
Acrolab A520 Probe Style Thermocouples & RTD's: Affordable, versatile, and ISO 9001:2015 certified.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Acrolab A520 Probe Style Plastic Thermocouples & RTD's
$49.99
Quantity: 1
Claim Your Seller Account
Acrolab A520 Probe Style Plastic Thermocouples & RTD's
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

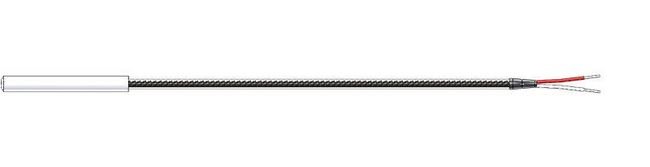

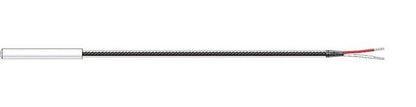

Upgrade your temperature sensing with Acrolab's A520 thermocouples & RTD's, offering a cost-effective tube and wire design as an alternative to Magnesium Oxide. Available in various calibrations for thermocouples and 2, 3, or 4 wire options for RTD's. Customize lengths, junction styles, and termination types for precise readings. Certified to ISO 9001:2015 standards.
Product Specifications
Specifications Calibration Type
J - Iron/Constantan | K - Chromel/Alumel | RTD2 - 100 Ω, 2 Wire | RTD3 - 100 Ω, 3 Wire | RTD4 - 100 Ω, 4 Wire | T - Copper/Constantan
Specifications Certifications
International Organization for Standardization (ISO 9001: 2015)
Specifications Junction Styles
Dual | Single
Specifications Length A
Specify
Specifications Length B
Specify
Specifications Options
29 - 1/8" Diameter Probe | 39 - 3/16" Diameter Probe | 99 - Fiberglass Wire without Stainless Steel Overbraid | AA - Special Construction | U - Ungrounded (3/16" OD Standard)
Specifications Termination Type
0 - Leads Not Stripped | 1 - Standard Male Plug | 2 - Standard Female Jack | 3 - BX Connector and 4" Stripped Leads with Spade Lugs | 4 - 4" Stripped Leads with Spade Lugs
Specifications Thermocouple Style

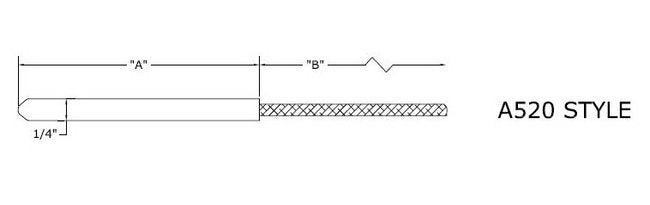

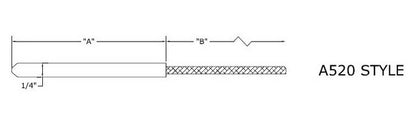

A520 - Probe Style Tube and Wire
