Acrolab Fixed Bayonet Plastic Thermocouples with RTD's

Name: Acrolab Fixed Bayonet Plastic Thermocouples with RTD's
Brand: Acrolab Ltd.
SKU: THE-c43de9
Price: 129.99 USD
Availability: OutOfStock

SKU:THE-c43de9

Acrolab Fixed Bayonet Plastic Thermocouples: Versatile, reliable, and certified for precise temperature monitoring.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

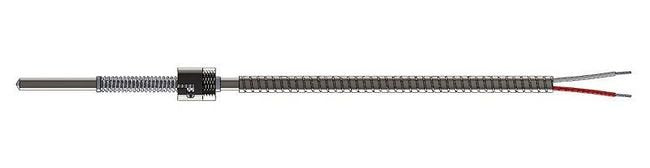

The Acrolab Fixed Bayonet Plastic Thermocouples with RTD's are expertly designed for the plastic processing industry, offering precise temperature measurement in various applications where a bayonet adaptor is essential. Featuring a 316SS sheath with SS square lock armored leads, these thermocouples come in multiple probe configurations and calibration types for versatile usage. With options like fiberglass wire with stainless steel overbraid and different termination types available, this product ensures reliable performance and accuracy in temperature monitoring, meeting the highest quality standards including ISO 9001:2015 certification.

Product Specifications

Specifications Calibration Type

Specifications Certifications

International Organization for Standardization (ISO 9001: 2015)

Specifications Junction Styles

Dual | Single

Specifications Length A

Specify

Specifications Length B

Specify

Specifications Options

Specifications Probe Configuration

Bayonet

Specifications Termination Type

0 - Leads Not Stripped | 1 - Standard Male Plug | 2 - Standard Female Jack | 3 - BX Connector and 4" Stripped Leads with Spade Lugs | 4 - 4" Stripped Leads with Spade Lugs

Specifications Thermocouple Design

Fixed

Specifications Thermocouple Style

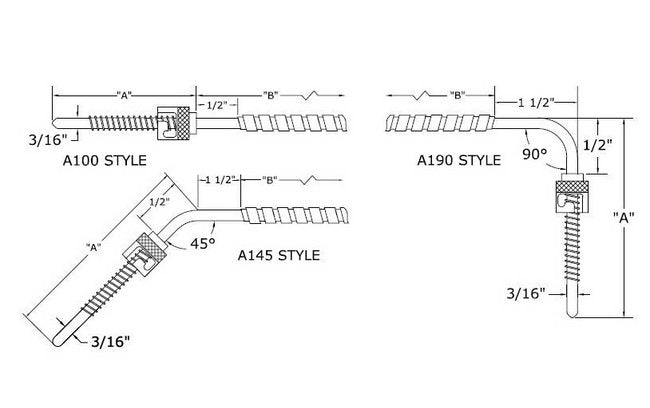

A100 - Straight Fixed Bayonet Style | A145 - 45º Fixed Bayonet Style | A190 - 90º Fixed Bayonet Style

Acrolab Fixed Bayonet Plastic Thermocouples with RTD's
