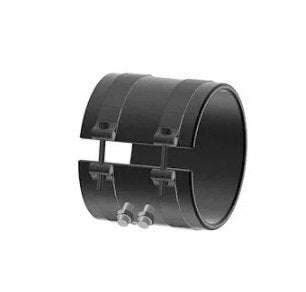

Acrolab HBA Mica Band Heater
Acrolab HBA Mica Band Heater
SKU:HEA-65cc2c
Customizable Acrolab HBA Mica Band Heater with various voltage options and durable lead types. ISO 9001:2015 certified for reliability.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Acrolab HBA Mica Band Heater
$59.99
Quantity: 1
Claim Your Seller Account
Acrolab HBA Mica Band Heater
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Acrolab HBA Mica Band Heater is a cost-effective solution with customizable wattage options and various voltage settings (120V, 240V, 480V, Other). Featuring FG-Fiberglass, FGA-Fiberglass with Armor, HFG-Hi-Temp Fiberglass, and more lead options for enhanced durability. This heater meets ISO 9001:2015 standards for quality assurance and reliability, making it ideal for industrial applications.
Product Specifications
Specifications Certifications
International Organization for Standardization (ISO 9001: 2015)
Specifications Clamping Styles
BN - Barrel Nuts | CP - Clamping Pads | FL - Flange Lock-Up | IS - Independent Strap | LP - Low Profile Barrel Nuts | LT - Latch and Trunnion | SB - Spring Loaded Barrel Nuts | WL - Wedge Lock
Specifications Construction Options
2P - 2 Piece Construction (Note: wattage indicated in box 5 will be total wattage) | H - Hole (Indicate inside diameter / location) | TC - Built In Thermocouple
Specifications Inside Diameter
Specify
Specifications Lead Length
Specify
Specifications Lead Type
FG - Fiberglass (482ºF) | FGA - Fiberglass with Armor (482ºF) | FGS - Fiberglass with Stainless Steel Braid (482ºF) | HFG - Hi-Temp Fiberglass (932ºF) | HFGA - Hi-Temp Fiberglass with Armor (932ºF) | HFGS - Hi-Temp Fiberglass with Stainless Steel Braid (932ºF) | T - Polytetrafluoroethylene (PTFE) (500ºF) | TA - Polytetrafluoroethylene (PTFE) with Armor (500ºF) | TB - Terminal Box
Specifications Lead Wire Terminations
C - Exit Either Side of the Gap on Thickness | C1- 90º Exit with Cap and Tube Near Gap, Exiting Towards Opening | C2 - 90º Cap with Tube Near Gap, Tangential | C3 - 45º Exit with Cap and Tube Near Gap, Exiting Towards Opening | C5 - 90º Exit with Cap and Tube Opposite Gap, Exiting Towards Opening | C6 - 90º Cap with Tube Opposite Gap, Tangential | C7 - 45º Exit with Cap and Tube Opposite Gap, Exiting Towards Opening | D - Leads Exiting Opposite Gap | E - Leads Exit Near Gap | F - Leads Exiting either Side of the Gap | I - Leads Exiting Opposite on Thickness
Specifications Plug Terminations
K00 - European Plug Vertical with Box | K3P - European Plug 3 Prong with Ground | K45 - European Plug 45º with Box | K90 - European Plug Tangential with Box
Specifications Screw Terminal Terminations
A - Separate on Opposite Sides of the Gap | AV - Separate on Opposite Sides of the Gap with Ceramic Protective Covers | B1 - Along the Width Side by Side | B1G - Along the Width Side by Side with Protective Terminal Box | B1V - Along the Width Side by Side with Ceramic Protective Covers | B2 - Along the Length Side by Side | B2G - Along the Length Side by Side with Protective Terminal Box | B2V - Along the Length Side by Side with Ceramic Protective Covers
Specifications Style
HBA Mica Band Heater
Specifications Voltage
120 V | 240 V | 480 V | Other
Specifications Wattage
Specify
Specifications Width
Specify
