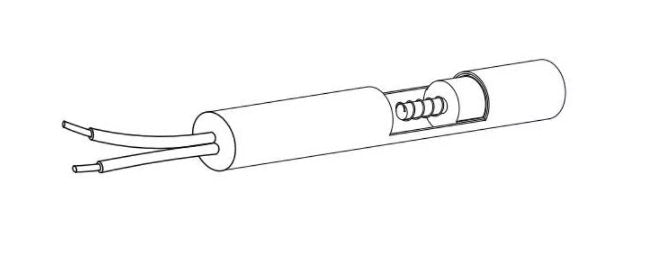

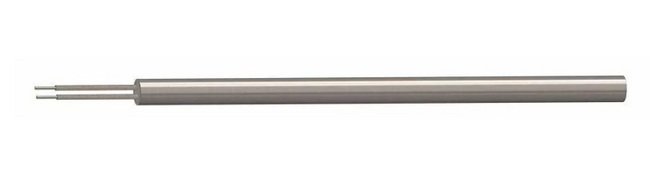

Acrolab HCA Round Cartridge Heaters
Acrolab HCA Round Cartridge Heaters
SKU:HEA-5d616d
Elevate industrial heating with Acrolab HCA Round Cartridge Heaters. Customizable, high-quality heaters for precise temperature control.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Acrolab HCA Round Cartridge Heaters
$59.99
Quantity: 1
Claim Your Seller Account
Acrolab HCA Round Cartridge Heaters
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial processes with Acrolab's HCA Round Cartridge Heaters. Designed for heated tooling and mold heat augmentation, these high-performance heaters withstand temperatures up to 1500ºF. With customizable options including diameter, heated length, voltage, wattage, and lead type, our engineers can tailor the perfect solution for your specific application. Trust in the quality and reliability of Acrolab's ISO 9001:2015 certified products.
Product Specifications
Specifications Certifications
International Organization for Standardization (ISO 9001: 2015)
Specifications Diameter
1 in | 1/2 in | 1/4 in | 3/4 in | 3/8 in | 5/16 in | 5/8 in | 10 mm | 12.5 mm | 15 mm | 16 mm | 6.5 mm | 8 mm
Specifications Distributed Wattage Dw
Specify
Specifications Flange Fl
Specify
Specifications Heated Length
Specify
Specifications Lead Exit And Options
90CL - 90º Clip Support | 90D - 90º From Sheath | 90DC - 90º Copper Elbow | 90DS - 90º Elbow With Spring | 90SR - 90º With Strain Relief Tube | CL - Clip Support | HB - Hex Bushing | NS - Non-Stick Coating | SRS - Strain Relief Spring | ST - Screw Terminals | TC - Internal Thermocouple Center | TC - Internal Thermocouple Tip
Specifications Lead Length
Specify
Specifications Lead Termination Options
BLANK - Standard Stripped Leads | PL - Plug
Specifications Lead Type
FG - Fiberglass (482ºF) | FGA - Fiberglass with Armor (482ºF) | FGS - Fiberglass with Stainless Steel Braid (482ºF) | HFG - Hi-Temp Fiberglass (932ºF) | HFGA - Hi-Temp Fiberglass with Armor (932ºF) | HFGS - Hi-Temp Fiberglass with Stainless Steel Braid (932ºF) | T - Polytetrafluoroethylene (PTFE) (500ºF) | TA - Polytetrafluoroethylene (PTFE) with Armor (500ºF)
Specifications National Pipe Thread Npt Bushing B
Specify
Specifications Plug Type
Specify
Specifications Shape
Round
Specifications Style
HCA Cartridge Heater
Specifications Voltage
120 V | 240 V | 480 V | Other
Specifications Wattage
Specify
