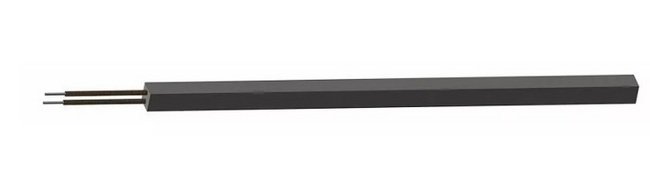

Acrolab HCA-SQ Square Cartridge Heaters
Acrolab HCA-SQ Square Cartridge Heaters
SKU:HEA-ef50c3
High-performance Square Cartridge Heaters for precise heating in tooling and molds. Customizable options for optimal performance.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Acrolab HCA-SQ Square Cartridge Heaters
$69.99
Quantity: 1
Claim Your Seller Account
Acrolab HCA-SQ Square Cartridge Heaters
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

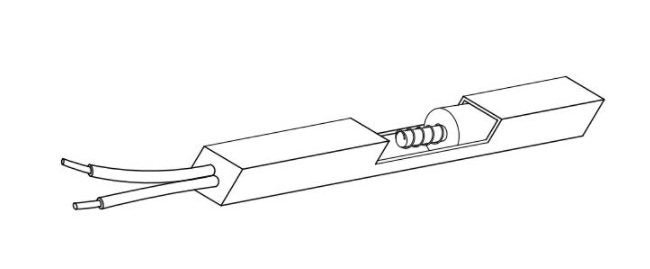

Acrolab HCA-SQ Square Cartridge Heaters are designed for heated tooling and mold heat augmentation, capable of withstanding sheath temperatures up to 1500ºF. Available in various diameters and lengths with options including different lead types, exit configurations, and certifications. Consult our engineers for tailored solutions to meet your application needs.
Product Specifications
Specifications Certifications
International Organization for Standardization (ISO 9001: 2015)
Specifications Diameter
1 in | 1/2 in | 1/4 in | 3/4 in | 3/8 in | 5/16 in | 5/8 in | 10 mm | 12.5 mm | 15 mm | 16 mm | 6.5 mm | 8 mm
Specifications Distributed Wattage Dw
Specify
Specifications Flange Fl
Specify
Specifications Heated Length
Specify
Specifications Lead Exit And Options
90CL - 90º Clip Support | 90D - 90º From Sheath | 90DC - 90º Copper Elbow | 90DS - 90º Elbow With Spring | 90SR - 90º With Strain Relief Tube | CL - Clip Support | HB - Hex Bushing | NS - Non-Stick Coating | SRS - Strain Relief Spring | ST - Screw Terminals | TC - Internal Thermocouple Center | TC - Internal Thermocouple Tip
Specifications Lead Length
Specify
Specifications Lead Termination Options
BLANK - Standard Stripped Leads | PL - Plug
Specifications Lead Type
FG - Fiberglass (482ºF) | FGA - Fiberglass with Armor (482ºF) | FGS - Fiberglass with Stainless Steel Braid (482ºF) | HFG - Hi-Temp Fiberglass (932ºF) | HFGA - Hi-Temp Fiberglass with Armor (932ºF) | HFGS - Hi-Temp Fiberglass with Stainless Steel Braid (932ºF) | T - Polytetrafluoroethylene (PTFE) (500ºF) | TA - Polytetrafluoroethylene (PTFE) with Armor (500ºF)
Specifications Length
Specify
Specifications National Pipe Thread Npt Bushing B
Specify
Specifications Plug Type
Specify
Specifications Shape
Square
Specifications Style
HCA-SQ Square Cartridge Heater
Specifications Voltage
120 V | 240 V | 480 V | Other
Specifications Wattage
Specify
