Acrolab HTUH Hairpin Tubular Heaters
Acrolab HTUH Hairpin Tubular Heaters
SKU:HEA-83fa5a
Customizable Acrolab Hairpin Tubular Heaters with high-temperature capability and versatile termination options for precise heating applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Acrolab HTUH Hairpin Tubular Heaters
$99.99
Quantity: 1
Claim Your Seller Account
Acrolab HTUH Hairpin Tubular Heaters
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

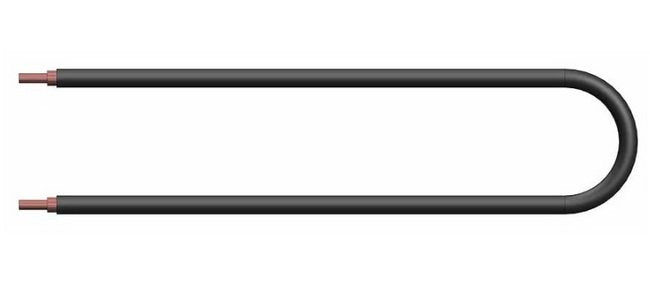

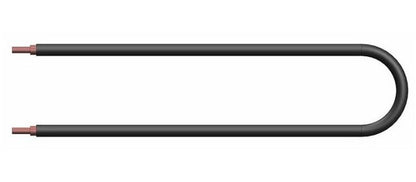

The Acrolab Hairpin Tubular Heaters offer versatile customization in various shapes. With a round cross-section and a high-temperature range of up to 1400ºF, these heaters are suitable for diverse applications. They can be used in free air, inside a groove, mounted to a surface, or cast into metal. Featuring multiple termination styles, such as FL Mounting Flange, LD Potted in Lead Wire, MB Mounting Bushings, and more, these heaters are designed to meet specific requirements. Certified by ISO 9001:2015, the Acrolab HTUH Hairpin Tubular Heaters ensure quality and precision heating solutions for both consumer and institutional needs.
Product Specifications
Specifications Certifications
International Organization for Standardization (ISO 9001: 2015)
Specifications Diameter
0.260 in | 0.315 in | 0.375 in | 0.430 in | 0.475 in

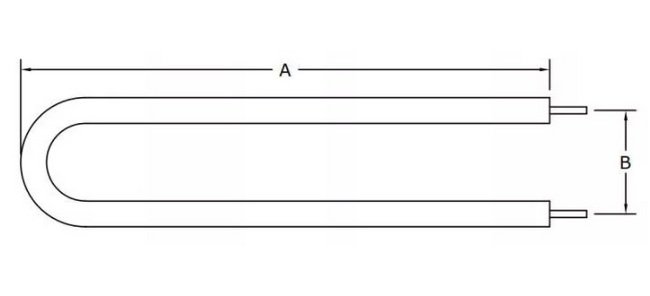

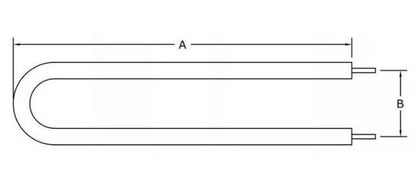

Specifications Length A
Specify Length in Inches or Millimeters
Specifications Length B
Specify Length in Inches or Millimeters
Specifications Style
HTUH Hairpin Tubular Heater
Specifications Termination Type
FL - Mounting Flange | LD (X) Potted in Lead Wire (Specify X in notes) | MB - Mounting Bushings | PN - Straight Pin (No Thread) | QD - Quick Disconnect | SO - Stacked On | ST - Standard Terminal with Insulation | TF - Threaded Flag
Specifications Voltage
120 V | 240 V | 480 V | Other
Specifications Wattage
Specify
