Acrolab's Industrial Noble Metal Thermocouple Elements: Precision, Durability, Reliability

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

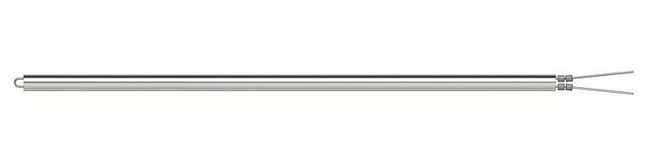

Enhance your high-temperature protection with Acrolab's industrial noble metal thermocouple elements. Designed for replacement in protection tube assemblies, these elements offer various calibrations, junction styles, and insulator options. Featuring 99.7% Alumina Insulators, ensure reliable performance even in extreme conditions. Choose from multiple wire gauges and enjoy a maximum temperature of 3400 ºF (1871 ºC). Meet your industrial needs with precision and durability.

Product Specifications

Specifications Calibration Type

B - Platinum/Rhodium | R - Platinum Rhodium/Platinum | S - Platinum Rhodium/Platinum

Specifications Hot Length

Specify

Specifications Insulations

00 - No Insulators, Bare Alloy | CI - Ceramic Insulator, Two Hole, Round

Specifications Junction Styles

Dual | Single

Specifications Maximum Temperature

3400 ºF | 1871 ºC

Specifications Note For Hot Length

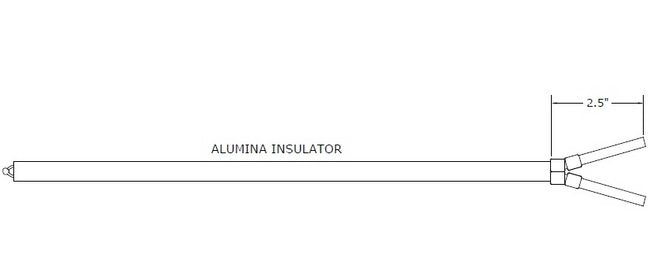

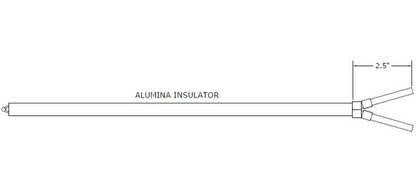

Actual Length Provided is 2.5" Longer than Specified to Allow for Terminal Connections.

Specifications Wire Gauge

24 - 24 Gauge (B, R, S Only) | 26 - 26 Gauge (R, S Only)
