Acrolab MgO Thermocouples
Acrolab MgO Thermocouples
SKU:THE-126197
High-quality MgO thermocouples with customizable features for precise temperature measurements in industrial settings.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Acrolab MgO Thermocouples
$49.99
Quantity: 1
Claim Your Seller Account
Acrolab MgO Thermocouples
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

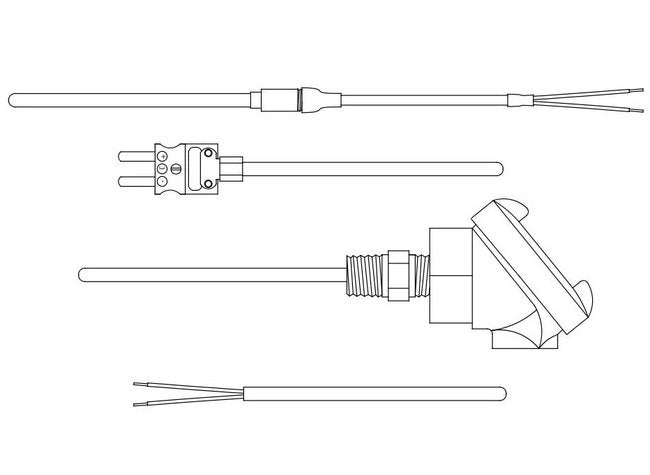

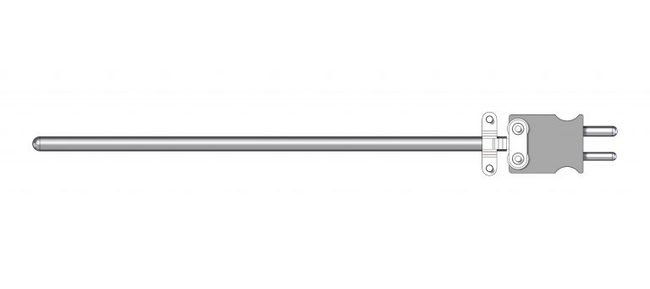

Acrolab's Magnesium Oxide (MgO) Thermocouples feature standard purity (96%) Magnesium Oxide mineral insulation in fully annealed metal sheaths. Available in various diameters, these thermocouples offer extreme flexibility and customizable options for hot junction styles, sheath coatings, lead wire terminations, and element fittings. Designed to meet the stringent requirements of industrial applications, Acrolab MgO Thermocouples ensure accurate temperature measurements in diverse environments.
Product Specifications
Element Fitting
Code - 00Fitting Type - No Element Mounting FittingCode - 01Fitting Type - Stainless Steel, One Time Adjustable Compression FittingDescription - 1/8 in. National Pipe Thread (NPT), Stainless Steel FerruleCode - 02Fitting Type - Stainless Steel, One Time Adjustable Compression FittingDescription - 1/2 in. National Pipe Thread (NPT), Stainless Steel FerruleCode - 05Fitting Type - Stainless Steel, One Time Adjustable Compression FittingDescription - 1/4 in. National Pipe Thread (NPT), Stainless Steel FerruleCode - 09Fitting Type - Stainless Steel, Re-Adjustable Compression FittingDescription - 1/8 in. National Pipe Thread (NPT), Lava Packing GlandCode - 12Fitting Type - Stainless Steel, Re-Adjustable Compression FittingDescription - 1/8 in. National Pipe Thread (NPT), Polytetrafluoroethylene (PTFE) FerruleCode - 14Fitting Type - Adjustable Steel Flange With Brass Compression FittingDescription - 3.5 in. Outside DiameterCode - 15Fitting Type - Brass, Adjustable Compression FittingDescription - 1/8 in. National Pipe Thread (NPT), Brass FerruleCode - 13Fitting Type - 304 Stainless Steel Weld Pad (1 in. x 1 in. x 1/8 in. Thick Standard)Description - 1/8 in. National Pipe Thread (NPT), Brass FerruleCode - 19Fitting Type - Brass, Adjustable Spring Loaded Well FittingDescription - 1/2 in. National Pipe Thread (NPT), Stainless Steel FerruleCode - 25Fitting Type - Brass, Adjustable Compression FittingDescription - 1/4 in. National Pipe Thread (NPT), Brass FerruleCode - 20(X)Fitting Type - Bayonet Cap And Spring (Specify "X" Dimension)Description - Available For 1/8 in. And 3/16 in. OD OnlyCode - 21(X)Fitting Type - Fixed Stainless Steel Bushing (Specify "X" Dimension)Description - 1/8 in. National Pipe Thread (NPT), For 1/16 in. , 1/8 in., 3/16 in., 1/4 in. OD OnlyCode - 23(X)Fitting Type - Fixed Stainless Steel Bushing (Specify "X" Dimension)Description - 1/4 in. National Pipe Thread (NPT) , For 1/16 in. , 1/8 in., 3/16 in., 1/4 in. OD OnlyCode - 24(X)Fitting Type - Fixed Stainless Steel Bushing (Specify "X" Dimension)Description - 1/2 in. National Pipe Thread (NPT) , For 1/8 in., 3/16 in., 1/4 in., 3/8 in. OD OnlyCode - 25(X)Fitting Type - Fixed Stainless Steel Bushing (Specify "X" Dimension)Description - 3/4 in. National Pipe Thread (NPT) , For 1/8 in., 3/16 in., 1/4 in. , 3/8 in. OD OnlyCode - AAFitting Type - Special Fitting
Extension Lead Wire
Code - 1Description - Fiberglass Insulation, Solid ConductorAvailable Configurations - J, K, T, E, NTemperature Rating - 900ºFCode - 2Description - FEP Polytetrafluoroethylene (PTFE) Insulation, Stranded Conductor - Stainless Steel ArmorAvailable Configurations - J, K, T, ETemperature Rating - 400ºFCode - 3Description - Hi-Temp Fiberglass Insulation, Solid ConductorAvailable Configurations - J, KTemperature Rating - 1300ºFCode - 4Description - Fiberglass Insulation, Stranded Conductor - Stainless Steel ArmorAvailable Configurations - J, K, T, ETemperature Rating - 900ºFCode - 5Description - FEP Polytetrafluoroethylene (PTFE) Insulation, Stranded ConductorAvailable Configurations - J, K, T, ETemperature Rating - 900ºFCode - 6Description - Polyvinyl Insulation, Stranded ConductorAvailable Configurations - J, K, T, ETemperature Rating - 221ºFCode - 7Description - Extreme Hi-Temperature Ceramic Fiber, Solid ConductorAvailable Configurations - KTemperature Rating - 2200ºFCode - 8Description - Fiberglass Insulation, Stranded ConductorAvailable Configurations - J, K, T, ETemperature Rating - 900ºFCode - 9Description - Fiberglass Insulation, Stranded Conductor- Stainless Steel BraidAvailable Configurations - J, KTemperature Rating - 900ºFCode - CCDescription - Special Lead Wire
Specifications Extension Wire Terminations
1 - Leads Not Stripped | 10 - Standard Size Female Jack with Mating Male Plug | 11 - Miniature Female Jack | 12 - Miniature Female Jack with Mating Male Plug | 13 - Standard Size 3 Pin Male Plug | 14 - Standard Size 3 Pin Female Jack | 15 - Standard Size 3 Pin Male Plug with Mating Female Jack | 16 - Standard Size 3 Pin Female Jack with Mating Male Plug | 2 - Leads Stripped 4" | 3 - Leads Stripped 4" with Spade Lugs | 4 - Standard Size Male Plug | 5 - Standard Size Male Plug with Mating Female Jack | 6 - Miniature Male Plug | 7 - Miniature Male Plug with Mating Female Jack | 8 - 12" Split Leads with 2" Stripped Leads with Spade Lugs and 1/2" BX Connector | 9 - Standard Size Female Jack
Specifications Hot Junction Styles
E - Exposed Junction | G - Grounded Junction | U - Ungrounded Junction
Specifications Lead Wire Length
Specify
Specifications Material
Magnesium Oxide (MgO)
Specifications Sheath Length
Specify
Specifications Sheath Options
H - High Purity MgO (99.6% Pure) | M - Special Limits of Error | P - Black PVC Coating on Sheath | T - Clear Polytetrafluoroethylene (PTFE) Coating On Sheath
