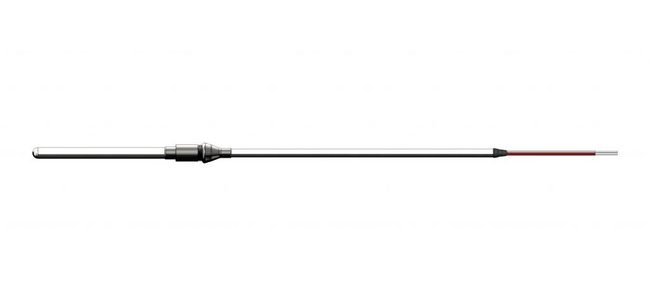

Enhance your temperature measurement accuracy with Acrolab's Precision Resistance Temperature Detectors (RTDs). Available in standard 0.3% accuracy or upgrade to 0.01% for unparalleled precision. Designed for moisture resistance with a 316SS sheath, these RTDs ensure reliability in various industrial applications. Choose from a range of customization options for seamless integration into your systems.
Product Specifications
Element Fitting
Code - 00Fitting Type - No Element Mounting FittingCode - 01Fitting Type - Stainless Steel, One Time Adjustable Compression FittingDescription - 1/8 in. National Pipe Thread (NPT), Stainless Steel FerruleCode - 02Fitting Type - Stainless Steel, One Time Adjustable Compression FittingDescription - 1/2 in. National Pipe Thread (NPT), Stainless Steel FerruleCode - 05Fitting Type - Stainless Steel, One Time Adjustable Compression FittingDescription - 1/4 in. National Pipe Thread (NPT), Stainless Steel FerruleCode - 09Fitting Type - Stainless Steel, Re-Adjustable Compression FittingDescription - 1/8 in. National Pipe Thread (NPT), Lava Packing GlandCode - 12Fitting Type - Stainless Steel, Re-Adjustable Compression FittingDescription - 1/8 in. National Pipe Thread (NPT), Polytetrafluoroethylene (PTFE) FerruleCode - 14Fitting Type - Adjustable Steel Flange With Brass Compression FittingDescription - 3.5 in. Outside DiameterCode - 15Fitting Type - Brass, Adjustable Compression FittingDescription - 1/8 in. National Pipe Thread (NPT), Brass FerruleCode - 13Fitting Type - 304 Stainless Steel Weld Pad (1 in. x 1 in. x 1/8 in. Thick Standard)Description - 1/8 in. National Pipe Thread (NPT), Brass FerruleCode - 19Fitting Type - Brass, Adjustable Spring Loaded Well FittingDescription - 1/2 in. National Pipe Thread (NPT), Stainless Steel FerruleCode - 25Fitting Type - Brass, Adjustable Compression FittingDescription - 1/4 in. National Pipe Thread (NPT), Brass FerruleCode - 20(X)Fitting Type - Bayonet Cap And Spring (Specify "X" Dimension)Description - Available For 1/8 in. And 3/16 in. OD OnlyCode - 21(X)Fitting Type - Fixed Stainless Steel Bushing (Specify "X" Dimension)Description - 1/8 in. National Pipe Thread (NPT), For 1/16 in. , 1/8 in., 3/16 in., 1/4 in. OD OnlyCode - 23(X)Fitting Type - Fixed Stainless Steel Bushing (Specify "X" Dimension)Description - 1/4 in. National Pipe Thread (NPT) , For 1/16 in. , 1/8 in., 3/16 in., 1/4 in. OD OnlyCode - 24(X)Fitting Type - Fixed Stainless Steel Bushing (Specify "X" Dimension)Description - 1/2 in. National Pipe Thread (NPT) , For 1/8 in., 3/16 in., 1/4 in., 3/8 in. OD OnlyCode - 25(X)Fitting Type - Fixed Stainless Steel Bushing (Specify "X" Dimension)Description - 3/4 in. National Pipe Thread (NPT) , For 1/8 in., 3/16 in., 1/4 in. , 3/8 in. OD OnlyCode - AAFitting Type - Special Fitting
Extension Lead Wire
Code - 2Description - FEP Polytetrafluoroethylene (PTFE) Insulation, Stranded Conductor - Stainless Steel ArmorTemperature Rating - 400ºFCode - 4Description - Fiberglass Insulation, Stranded Conductor - Stainless Steel ArmorTemperature Rating - 900ºFCode - 5Description - FEP Polytetrafluoroethylene (PTFE) Insulation, Stranded ConductorTemperature Rating - 900ºFCode - 8Description - Fiberglass Insulation, Stranded ConductorTemperature Rating - 900ºFCode - 9Description - Fiberglass Insulation, Stranded Conductor- Stainless Steel BraidTemperature Rating - 900ºFCode - CCDescription - Special Lead Wire
Specifications Extension Wire Terminations
1 - Leads Not Stripped | 10 - Standard Size 3 Pin Male Plug | 11 - Standard Size 3 Pin Female Jack | 12 - Standard Size 3 Pin Male Plug with Mating Female Jack | 13 - Standard Size 3 Pin Female Jack with Mating Male Plug | 2 - Leads Stripped 4" | 3 - Leads Stripped 4" with Spade Lugs | 4 - Standard Size Male Plug | 5 - Standard Size Male Plug with Mating Female Jack | 6 - Miniature Male Plug | 7 - Miniature Male Plug with Mating Female Jack | 8 - 12" Split Leads with 2" Stripped Leads with Spade Lugs and 1/2" BX Connector | 9 - Standard Size Female Jack
Specifications Lead Wire Length
Specify
Specifications Outside Diameter
0.032 to 3/8 in
Specifications Sheath And Other Options
A - High Accuracy Bulb (± 0.01% Accuracy) | C - First Response Copper Sheath | H - High Temp Bulb (400ºF/204ºC) (0.1% Accuracy Only) | P - Black PVC Coating on Sheath | T - Clear Polytetrafluoroethylene (PTFE) Coating on Sheath
Specifications Sheath Length
Specify
Specifications Standard Accuracy
0.3 %

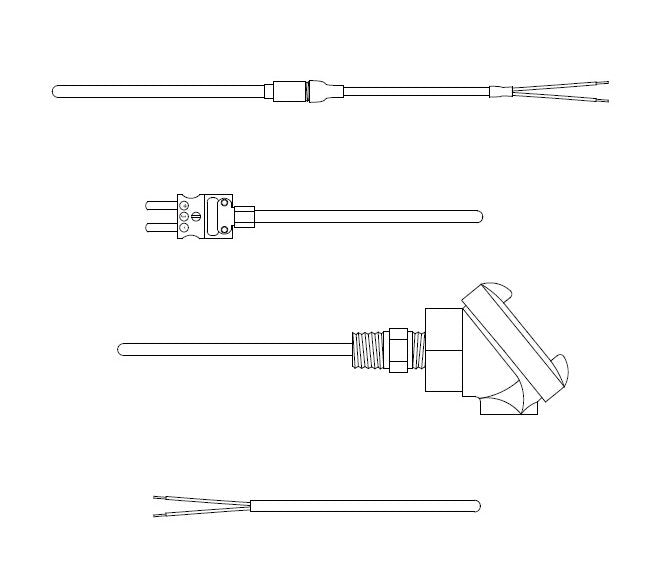

Terminations Head Terminations
17 - Miniature Plastic Head, 1/4 in. NPT Process and Conduit Openings | 31 - Cast Aluminum Screw Cover Head with No Process Thread | 32 - Cast Aluminum Screw Cover Head with 1/2 in. NPT Steel Hex Fitting | 33 - Cast Aluminum Screw Cover Head with 1/2 in. NPT Stainless Steel Hex Fitting | 34 - Cast Iron Cover Screw Head with No Process Thread | 35 - Cast Iron Cover Screw Head with 1/2 in. NPT Steel Hex Fitting | 36 - Cast Iron Cover Screw Head with 1/2 in. NPT Stainless Steel Hex Fitting | TR - Head Mounted Transmitter
Terminations Lead Wire Transitions
15 - Extension Lead Wire Transition Fitting and Relief Spring | 15H - High Temperature Transition Fitting | 16 - Extension Lead Wire Transition Fitting Sealed with Heat Shrink | 19 - Inline Transition Fitting | BB - Special Termination
Terminations Plug And Jack Terminations
03 - Standard Size Plug 1/16" Through 1/4" OD Sheath Only | 04 - Standard Size Plug with Mating Jack | 05 - Miniature Size Plug 1/16" Through 3/16" OD Sheath Only | 06 - Miniature Size Plug with Mating Jack | 39 - Standard Size Jack 1/16" Through 1/4" OD Sheath Only | 40 - Standard Size Jack with Mating Jack | 41 - Miniature Size Jack 1/16" Through 3/16" OD Sheath Only | 42 - Miniature Size Jack with Mating Plug | AA - Special Fitting
Terminations Sheath Terminations
01 - Square End | 02 - 1" Stripped Leads | 22 - 3" Stripped Leads | 37 - 1/2" NPT Steel Hex Fitting with 3" Stripped Leads | 38 - 1/2" NPT Stainless Steel Hex Fitting with 3" Stripped Leads
Terminations Terminations Select Only One
Head Terminations | Leadwire Transitions | Plug and Jack Terminations | Sheath Terminations
