Acrolab Sanitary Connected Thermocouples
Acrolab Sanitary Connected Thermocouples
SKU:THE-78b151
Acrolab's industry-leading Sanitary Connected Thermocouples: 316SS sheaths, FDA compliant heads, 3-A Standard, fast response times.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Acrolab Sanitary Connected Thermocouples
$49.99
Quantity: 1
Claim Your Seller Account
Acrolab Sanitary Connected Thermocouples
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

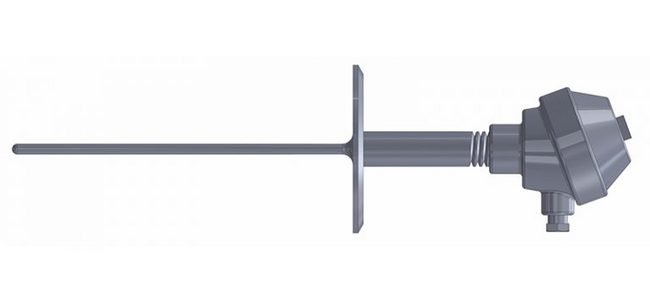

Acrolab's Sanitary Connected Thermocouples are designed for the stringent demands of beverage, chemical, dairy, food, and pharmaceutical processing industries. These CIP style thermocouples feature 316SS sheaths with FDA compliant white thermoplastic heads. Meeting 3-A Sanitary Standard 74, these assemblies ensure superior wash down protection. Choose from various calibration options, lengths, and sanitary cap styles to suit your specific application needs. With reduced tips for enhanced response times, Acrolab delivers reliable and accurate temperature measurements in critical environments.
Product Specifications
Specifications Calibration
EESC - Dual Type E | ESC- Single Type E | JJSC - Dual Type J | JSC - Single Type J | KKSC - Dual Type K | KSC - Single Type K | TSC - Single Type T | TTSC - Dual Type T
Specifications Length
04 - 4 in. | 05 - 5 in. | 55 - 5 1/2 in. | 65 - 6 1/2 in. | XX - Other (Specify)
Specifications Options

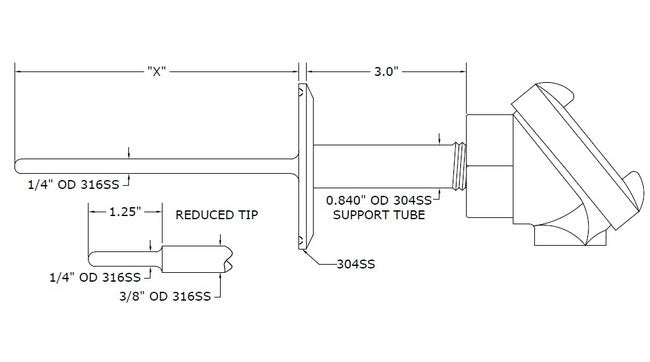

22 - No Head, 6 in. Polytetrafluoroethylene (PTFE) Leads | EP - White Epoxy Coating on Head | PP - White Polypropylene Head | R - Spring Loaded T/C or RTD | RD - Reduced Tip | SH - 316L Stainless Steal Head | ST - Stainless Steel Tags | TR - Head Mounted Transmitter | U - Ungrounded Junction (T/C Only) | W - White Epoxy Coated Aluminum Head | WS - Wire Seal Security Screws
Specifications Sanitary Cap Size
1 - 1 1/2 in. | 2 - 2 in. | 3 - 2 1/2 in. | 4 - 3 in. | 5 - Other (Specify)
Specifications Sanitary Cap Style
2 - 16A Cap - Bevel Seat with 13-H Nut (Must Be Manually Cleaned) | 5 - 16 AMP - Tri-Clamp® | 7 - 16 AI-14I Cap (Not 3A Authorized) | 8 - Other (Describe)
Specifications Sanitary Standards
3-A
