Acrolab Sanitary Connected Thermocouples with RTD's
Acrolab Sanitary Connected Thermocouples with RTD's
SKU:THE-04ffe6
High-quality Sanitary Thermocouples with RTD's for hygienic applications. Meets 3-A Sanitary Standard 74-.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Acrolab Sanitary Connected Thermocouples with RTD's
$149.99
Quantity: 1
Claim Your Seller Account
Acrolab Sanitary Connected Thermocouples with RTD's
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

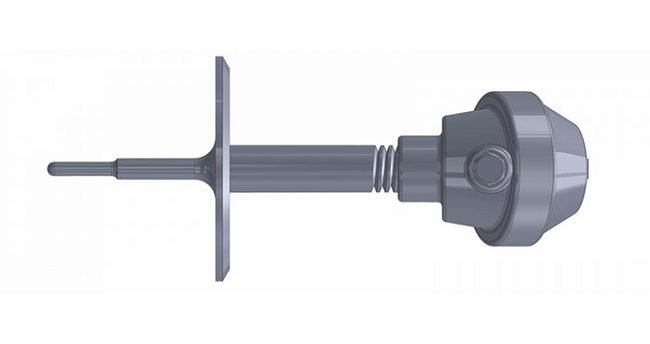

Acrolab's Sanitary Connected Thermocouples with Resistance Temperature Detectors (RTD's) are designed for hygienic applications in beverage, chemical, dairy, food, and pharmaceutical industries. Featuring 316SS sheaths and FDA-compliant white thermoplastic heads, these CIP style thermocouples meet 3-A Sanitary Standard 74-. With options for reduced tips and excellent wash down protection, these assemblies offer fast response times for critical temperature monitoring.
Product Specifications
Specifications Calibration
RTD/RTDSC - Dual 3-Wire RTD | RTDSC - 3-Wire RTD
Specifications Length
04 - 4 in. | 05 - 5 in. | 55 - 5 1/2 in. | 65 - 6 1/2 in. | XX - Other (Specify)
Specifications Options
22 - No Head, 6 in. Polytetrafluoroethylene (PTFE) Leads | EP - White Epoxy Coating on Head | PP - White Polypropylene Head | R - Spring Loaded T/C or RTD | RD - Reduced Tip | SH - 316L Stainless Steal Head | ST - Stainless Steel Tags | TR - Head Mounted Transmitter | U - Ungrounded Junction (T/C Only) | W - White Epoxy Coated Aluminum Head | WS - Wire Seal Security Screws
Specifications Sanitary Cap Size
1 - 1 1/2 in. | 2 - 2 in. | 3 - 2 1/2 in. | 4 - 3 in. | 5 - Other (Specify)
Specifications Sanitary Cap Style
2 - 16A Cap - Bevel Seat with 13-H Nut (Must Be Manually Cleaned) | 5 - 16 AMP - Tri-Clamp® | 7 - 16 AI-14I Cap (Not 3A Authorized) | 8 - Other (Describe)
Specifications Sanitary Standards
3-A
