Acrolab Straight Base Metal Industrial Thermocouple Elements

Name: Acrolab Straight Base Metal Industrial Thermocouple Elements
Brand: Acrolab Ltd.
SKU: THE-2a4ade
Price: 49.99 USD
Availability: OutOfStock

SKU:THE-2a4ade

Reliable Acrolab base metal thermocouple elements for precise temperature readings in industrial settings.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

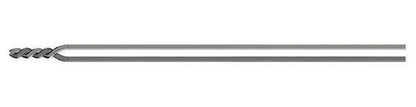

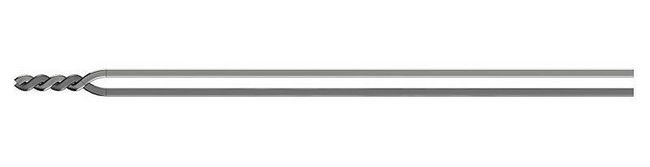

Upgrade your protection tube assemblies with our Acrolab straight base metal industrial thermocouple elements. Designed for durability and precision, these replacement elements come in various calibrations, junction styles, insulator options, and wire gauges to meet your specific needs. Featuring J - Iron/Constantan, K - Chromel/Alumel, and N - Nicrosil/Nisil calibrations, our thermocouple elements are supplied with refractory insulators for reliable performance. With maximum temperatures of 2475 ºF, these elements ensure accurate temperature readings in industrial environments.

Product Specifications

Specifications Calibration Type

J - Iron/Constantan | K - Chromel/Alumel | N - Nicrosil/Nisil

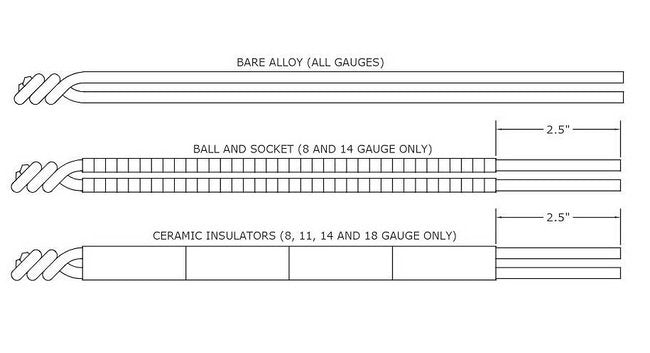

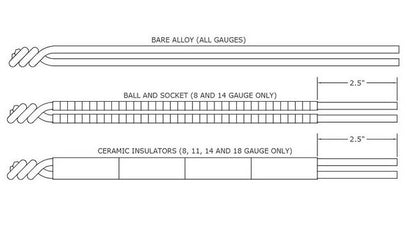

Specifications Insulations

00 - No Insulators, Bare Alloy | B - Ball and Socket | CI - Ceramic Insulator, Two Hole, Oval

Specifications Junction Styles

Dual | Single

Specifications Length

Specify

Specifications Maximum Temperature

2475 ºF | 1357 ºC

Specifications Note For Length

Actual Length Provided is 2.5" Longer than Specified to Allow for Terminal Connections.

Specifications Options

Specifications Wire Gauge

11 - Gauge (J, K, Only) | 14 - Gauge (J, K, N Only) | 20 - Gauge (J, K, Only) | 8 - Gauge (J, K, N Only)
