Actuator Style Adjustable Height Welded Construction Benchoist Workstation
Actuator Style Adjustable Height Welded Construction Benchoist Workstation
SKU:REL-bf9ad9
Boost efficiency with Actuator Style Adjustable Height Welded Construction Benchoist Workstation. Heights adjust smoothly with push-button control.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Actuator Style Adjustable Height Welded Construction Benchoist Workstation
$1,299.99
Quantity: 1
Claim Your Seller Account
Actuator Style Adjustable Height Welded Construction Benchoist Workstation
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance productivity and efficiency with the Actuator Style Adjustable Height Welded Construction Benchoist Workstation. This sturdy workstation features a 3' x 4' steel or maple bench with a push-button control for easy height adjustments. With a bench speed of 1/2" per second for 500 lb capacity and 1/4" per second for 850 lb capacity, it ensures smooth operation. The actuator is equipped with integral limit switches and runs on 24 VDC low-voltage control. The 6'-0" jib swivels 180°, and it comes with easy-rolling trolley and anchor bolts for added convenience and stability.
Product Specifications
Specifications Bench Capacity
850 lbs.
Specifications Bench Size
3' x 4' | 3' x 5'
Specifications Bench Type
Electrically Adjustable Actuator Style 500 lb. | Electrically Adjustable Scissor Style 1000 lb. | Electrically Adjustable Scissor Style 850 lb. | Existing | Fixed Height | Manually Adjustable 500 lb.
Specifications Capacity
100 lbs. | 250 lbs. | 500 lbs. | 1000 lbs.

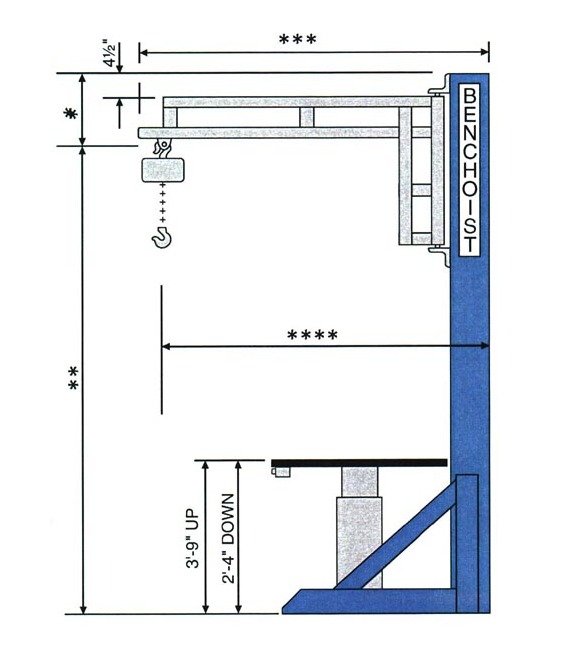

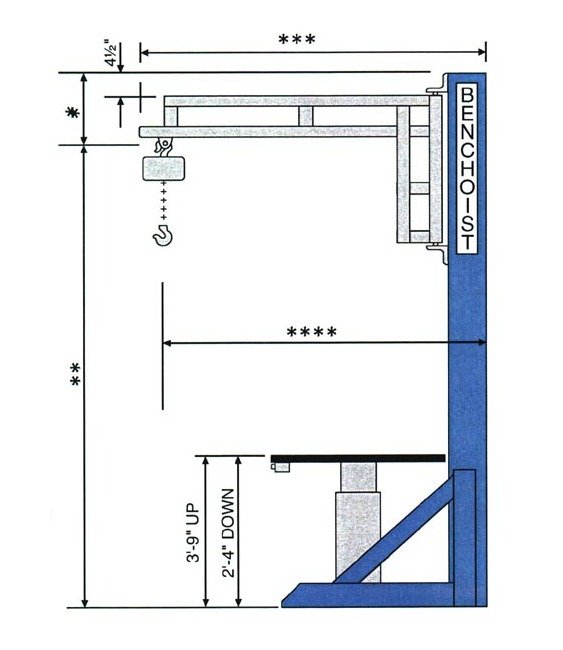

Specifications Dimension A
1'-4 1/2"
Specifications Dimension B
8'-7 1/2"
Specifications Dimension C
7'-1"
Specifications Dimension D
6'-7"

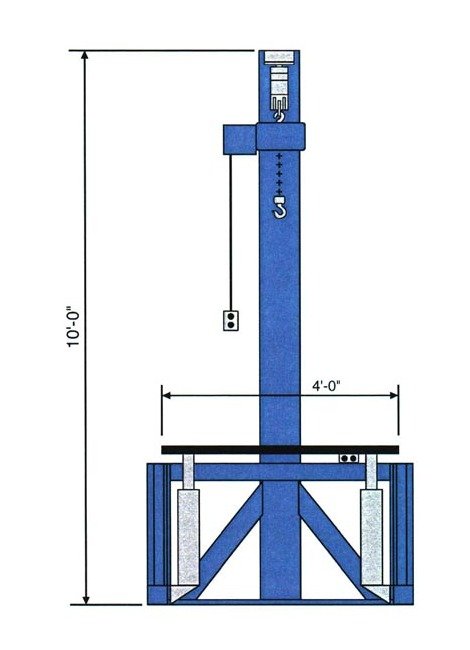

Specifications Headroom
Low Headroom High Frames & Low Headroom Jib | Standard Headroom 10'-0" High Frames & Lowheadroom Jib
Specifications Jib Capacity
850 lbs.
Specifications Jib Span
6 ft | 8 ft
Specifications Material
Maple | Shoptop | Steel
Standard Features 0
Adjustable height, push button control 3' x 4' steel or maple bench Bench speed is 1/2" per second for 500 lb. capacity, and 1/4" per second for 850 lb. capacity Actuator has integral limit switches 24 VDC low-voltage control, 120 V, 1.6 A 6'-0" jib swivels 180°Easy-rolling trolley Anchor bolts
