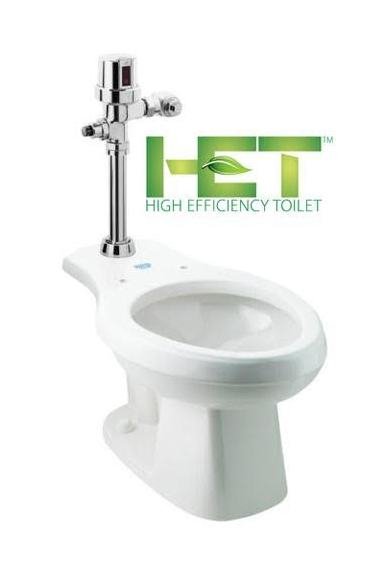

ADA-Compliant Floor Mount Low Consumption Flush Valve

Name: ADA-Compliant Floor Mount Low Consumption Flush Valve
Brand: C&L Supply Company, Inc.
SKU: HIG-f7d41c
Price: 299.99 USD
Availability: OutOfStock

SKU:HIG-f7d41c

Upgrade to an ADA-compliant, water-efficient flush valve for superior performance and accessibility.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience the ultimate in water efficiency with our ADA-compliant Floor Mount Low Consumption Flush Valve. This system features a vitreous china fixture with a fully glazed trapway and direct feed jet for maximum performance. Complying with Americans with Disabilities Act (ADA) standards as well as ASME, ICC, ANSI, and more, this check valve ensures accessibility and quality. With a white color finish and elongated rim design, it combines practicality with sleek aesthetics.

Product Specifications

Specifications Compliance And Certifications

American Society of Mechanical Engineers (ASME) A112.19.2/CSA B45.1Energy Act of 1992Americans with Disabilities Act (ADA)- With installation consideration for section 604 Water Closets, Accessibility Guidelines.International Code Council (ICC)/American National Standards Institute (ANSI) A117.1Texas Accessibility Standards (TAS) - With installation consideration for section:4.16.3. Adult seat height 17 Inch (in) (432 Millimeter (mm)) to 19 Inch (in) (483 Millimeter (mm)).Canadian Standards Association (CSA) B651 - With installation consideration for Clause 4.3.6 of the standard.International Code Council Evaluation Service Paper Money GradingÂ® (ICC-ES PMG) Certified

Specifications Maximum Static Pressure

80 psi

Specifications Minimum Flowing Pressure

25 psi

Specifications Minimum Flow Rate

25 gpm

Specifications Specifications

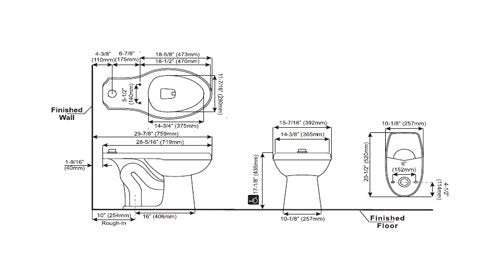

Complies with Americans with Disabilities Act (ADA) Accessible StandardsWhite ColorVitreous ChinaFloor Mount Water Closet BowlElongated Rim10 Inch (in) (254 Millimeter (mm)) Rough-In1-1/2 Inch (in) (38 Millimeter (mm)) I.P.S. Top Spud Inlet2 Inch (in) (50 Millimeter (mm)) Fully Glazed Trapway11-1/2 Inch (in) (292 Millimeter (mm)) x 13 Inch (in) (330 Millimeter (mm)) Water Surface AreaDirect Feed Jet100% Factory TestedToilet Seat Not Included
