ADA High Efficiency Flushing Check Valve - MF-700-T12-2
ADA High Efficiency Flushing Check Valve - MF-700-T12-2
SKU:HIG-6de8d4
Efficient and compliant ADA High Efficiency Flushing Check Valve for institutional use, meets ASSE, ASME, and CSA standards.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
ADA High Efficiency Flushing Check Valve - MF-700-T12-2
$149.99
Quantity: 1
Claim Your Seller Account
ADA High Efficiency Flushing Check Valve - MF-700-T12-2
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

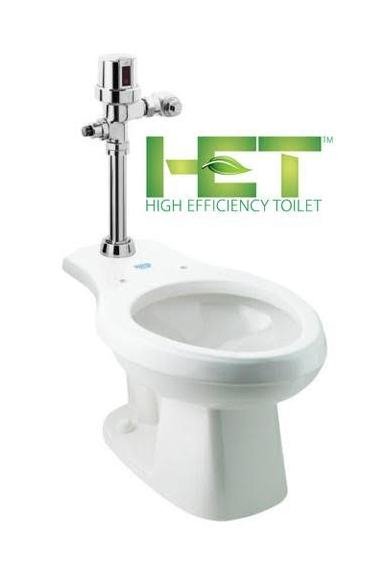

The ADA High Efficiency Flushing Check Valve - MF-700-T12-2 is a reliable HET system featuring an exposed manual water closet flushometer and ADA-compliant vitreous china fixture. With a minimum flowing pressure of 25 psi and maximum static pressure of 80 psi, this chrome-plated, diaphragm type flushometer offers quiet operation and water conservation. It meets ASSE 1037-2015, ASME A112.1035-2015, and CSA B125.37-15 standards, ensuring reliability and compliance for various institutional applications.
Product Specifications
Specifications Compliance And Certifications
American Society of Safety Engineers (ASSE) 1037-2015American Society of Mechanical Engineers (ASME) A112.1035-2015Canadian Standards Association (CSA) B125.37-15
Specifications Maximum Static Pressure
80 psi
Specifications Minimum Flowing Pressure
25 psi
Specifications Minimum Flow Rate
25 gpm
Specifications Specifications
Chrome Plated, Exposed, Diaphragm Type Water Closet Flushometer for Use with Right or Left Side Water SupplyQuiet OperationUses Proprietary Silicone Diaphragm with Filtered BypassAmericans with Disabilities Act (ADA) Compliant Non-Hold Open Sealed Brass Handle1 Inch (in) I.P.S. Angle StopAdjustable TailpieceHigh Back Pressure Vacuum Breaker with Single Piece Hex Coupling NutSpud Coupling and Flange for 1-1/2 Inch (in) Top SpudSweat Solder Kit and Wall Flange with Set ScrewNo External Water Volume AdjustmentHigh Efficiency for Water Conservation
