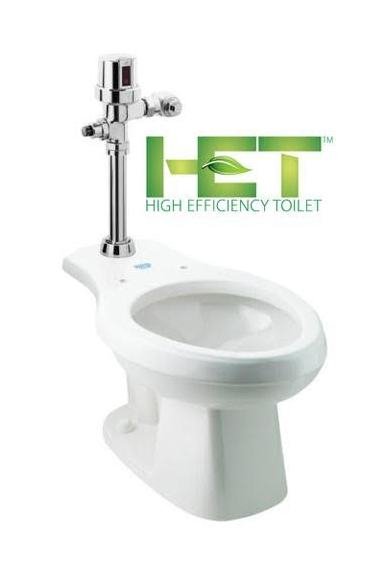

ADA Wall Hung High Efficiency Flushing Check Valve
ADA Wall Hung High Efficiency Flushing Check Valve
SKU:HIG-d86b46
Cutting-edge ADA wall hung flushing valve for efficient water use, meets ASSE, ASME, and CSA standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
ADA Wall Hung High Efficiency Flushing Check Valve
$299.99
Quantity: 1
Claim Your Seller Account
ADA Wall Hung High Efficiency Flushing Check Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ADA Wall Hung High Efficiency Flushing Check Valve is a cutting-edge, battery-powered, sensor-operated flush system that combines automatic and manual operation for ultimate reliability. It features a patented HYBRIDFLUSH® mechanism, allowing seamless transition between automatic and manual flushing. With a sensor range of 18 to 30 inches, arming delay time of 5 seconds, and ghost flush prevention, this system ensures efficient water usage and minimal maintenance. It meets ASSE 1037-2015, ASME A112.1035-2015, and CSA B125.37-15 standards for safety and performance, making it ideal for government and institutional procurement.
Product Specifications
Specifications Arming Delay Time
5 s
Specifications Battery Life
>3 year
Specifications Battery Type
Four AA Alkaline Batteries
Specifications Compliance And Certifications
American Society of Safety Engineers (ASSE) 1037-2015American Society of Mechanical Engineers (ASME) A112.1035-2015Canadian Standards Association (CSA) B125.37-15
Specifications Flush Delay
3 s
Specifications Flush Mode
After Every Use
Specifications Ghost Flush
Once Every 24 Hours from Last Flush
Specifications Manual Override
Mechanical Flush Button or None
Specifications Maximum Static Pressure
80 psi
Specifications Minimum Flowing Pressure
25 psi
Specifications Minimum Flow Rate
25 gpm
Specifications Operating Water Pressure
15 to 100 psi
Specifications Operation
Hybrid (Automatic/Manual)
Specifications Outer Casing
Standard-Chrome Metal
Specifications Sensing Range
18 to 30 in | 45 to 75 cm
Specifications Sensor Angle
Adjustable Angle
Specifications Sensor Type
Infrared
Specifications Specifications
User present for less than 60 seconds initiates a reduced flush (1.1 gallons per flush (gpf)/4.2 liters per flush (lpf)) eliminating liquid and paper wasteUser present for more than 60 seconds initiates a full flush 1.6 gpf/6.0 Lpf) eliminating solid and paper wasteReduced flush consumes up to 30% less waterPatented BRV® and Gear Motor DriveHands Free Infrared Sensor ActivationVandal and Water Resistant DesignChrome Plated All Metal HousingQuiet OperationTrue Mechanical Override (Side) *Mechanical Button/Handle Works When Batteries are DrainedOperates on (4) âAAâ Alkaline Batteries (Included)Battery Life - 3+ YearsâLow Batteryâ Blinking LED IndicatorEasy Battery Replacement-No Water Shut Off NecessaryAdjustable Sensor AngleAdjustable Sensor DistanceOptional Three (3) Second Flush Delay ModeOptional 24-Hour Flush ModeUses Proprietary Silicone Diaphragm with Filtered Bypass1 Inch (in) I.P.S. Angle StopAdjustable TailpieceHigh Back Pressure Vacuum Breaker with Single Piece Hex Coupling NutSpud Coupling and Flange for 1-1/2 Inch (in) Top SpudSweat Solder Kit and Wall Flange with Set ScrewHigh Efficiency For Water Conservation
Specifications The Hybridflush Advantage
The HYBRIDFLUSH® is a revolutionary full-featured automatic/manual flush valve system. The HYBRIDFLUSH® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH® design allows for the original flush handle or push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
