ADB Alloy Steel Shackle Hoist Rings - Inch
ADB Alloy Steel Shackle Hoist Rings - Inch
SKU:HOI-a1e113
Engineered to perfection for lifting heavy structures with safety and precision. ADB Alloy Steel Shackle Hoist Ring - Inch is your reliable lifting companion.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
ADB Alloy Steel Shackle Hoist Rings - Inch
$279.99
Quantity: 1
Claim Your Seller Account
ADB Alloy Steel Shackle Hoist Rings - Inch
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

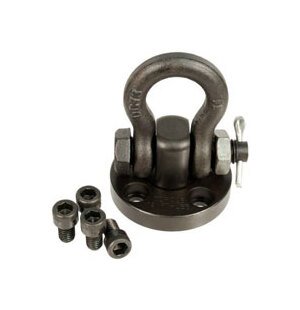

The ADB Alloy Steel Shackle Hoist Ring is a superior industrial lifting solution engineered to meet stringent standards. With a black oxide finish and a 5:1 safety factor, this hoist ring boasts a 180° pivot and 360° swivel capability. Designed for OEM applications, this hoist ring is ideal for permanent mounting on dies, molds, fixtures, or equipment. It meets OSHA standards, undergoes 100% Magnetic Particle inspection, and is destructively tested by independent laboratories. Suitable for lifting heavy structures, this hoist ring offers reliability, durability, and precision in every lift.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A Radius
1.63 in
Specifications B Base Height
4.51 in
Specifications Country Of Origin
US
Specifications C Ring Width
5.75 in
Specifications D Diameter
1.38 in
Specifications Finish
Black Oxide
Specifications F Height
9.68 in
Specifications I Overall Width
6.51 in
Specifications Material
Alloy Steel
Specifications O Swivel Center Line
2.91 in
Specifications Pivot
180 º
Specifications Ps Load Rated
24000 Pounds (10886 kg)
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications S Bolt Hole Pattern
4.50 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
25.70 lb
Specifications X Base Thickness
1.30 in
Specifications Y Screw Size
7/8-9 x 2 in
