ADB Shackle Hoist Ring - Alloy Steel, Black Oxide Finish
ADB Shackle Hoist Ring - Alloy Steel, Black Oxide Finish
SKU:HOI-7eeb47
Premium ADB Shackle Hoist Ring for industrial lifting applications. Alloy Steel, Black Oxide Finish, 5:1 Safety Factor, OSHA compliant, Load Rated for 2000 pounds.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
ADB Shackle Hoist Ring - Alloy Steel, Black Oxide Finish
$79.99
Quantity: 1
Claim Your Seller Account
ADB Shackle Hoist Ring - Alloy Steel, Black Oxide Finish
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

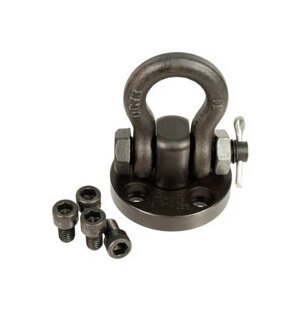

The ADB Shackle Hoist Ring is a premium industrial lifting solution designed for OEM applications and permanent mounting on dies, molds, fixtures, or equipment. Crafted from Alloy Steel with a Black Oxide Finish, this hoist ring offers exceptional strength and durability. It features a 180° Pivot and 360° Swivel, meeting stringent safety standards with a 5:1 Safety Factor. Compliant with OSHA standards, this hoist ring undergoes 100% Magnetic Particle inspection and destructive testing by independent laboratories, ensuring reliability and safety. With a load rating of 2000 pounds, this hoist ring is ideal for lifting large and heavy structures.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A Radius
0.52 in
Specifications B Base Height
1.43 in
Specifications Country Of Origin
US
Specifications C Ring Width
1.78 in
Specifications D Diameter
0.38 in
Specifications Finish
Black Oxide
Specifications F Height
2.96 in
Specifications I Overall Width
2.17 in
Specifications Material
Alloy Steel
Specifications O Swivel Center Line
0.91 in
Specifications Pivot
180 º
Specifications Ps Load Rated
2000 Pounds (907 kg)
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications S Bolt Hole Pattern
1.56 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.8 lb
Specifications X Base Thickness
0.40 in
Specifications Y Screw Size
1/4-20 x 1/2 in
