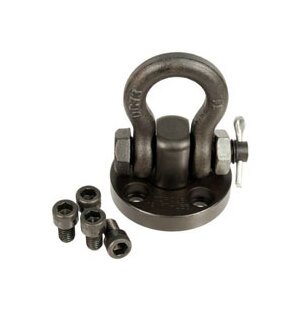

ADB Shackle Hoist Ring - Alloy Steel, Black Oxide Finish
ADB Shackle Hoist Ring - Alloy Steel, Black Oxide Finish
SKU:HOI-de5989
Improve lifting operations with the ADB Shackle Hoist Ring - Alloy Steel, Black Oxide Finish. 180° Pivot, 360° Swivel. Meets OSHA standards.
Regular price
$68.99
Regular price
Sale price
$68.99
Unit price
per
Initiate Order
ADB Shackle Hoist Ring - Alloy Steel, Black Oxide Finish
$68.99
Quantity: 1
Claim Your Seller Account
ADB Shackle Hoist Ring - Alloy Steel, Black Oxide Finish
$68.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your lifting operations with the ADB Shackle Hoist Ring. Crafted from high-quality alloy steel with a durable black oxide finish, this hoist ring offers a 180° pivot and 360° swivel for versatile lifting angles. With a safety factor of 5:1, it meets OSHA standards and undergoes thorough testing for reliable performance. Ideal for OEM applications and permanent mounting, this shackle hoist ring is designed for lifting heavy structures with ease and safety.
Product Specifications
Specifications A Radius
0.58 in
Specifications B Base Height
1.76 in
Specifications Country Of Origin
US
Specifications C Ring Width
2.03 in
Specifications D Diameter
0.44 in
Specifications Finish
Black Oxide
Specifications F Height
3.55 in
Specifications I Overall Width
2.51 in
Specifications Material
Alloy Steel
Specifications O Swivel Center Line
1.16 in
Specifications Pivot
180 º
Specifications Ps Load Rated
3000 Pounds (1361 kg)
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications S Bolt Hole Pattern
1.76 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
1.30 lb
Specifications X Base Thickness
0.52 in
Specifications Y Screw Size
5/16-18 x 1/2 in
