Adjustable Air Amplifier - 78 dBA Sound Level, 10 Ratio Amplification
Adjustable Air Amplifier - 78 dBA Sound Level, 10 Ratio Amplification
SKU:ADJ-3a24b2
Achieve tailored airflow from gentle breeze to powerful blast. Compact, noise-efficient stainless steel design.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Adjustable Air Amplifier - 78 dBA Sound Level, 10 Ratio Amplification
$299.99
Quantity: 1
Claim Your Seller Account
Adjustable Air Amplifier - 78 dBA Sound Level, 10 Ratio Amplification
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

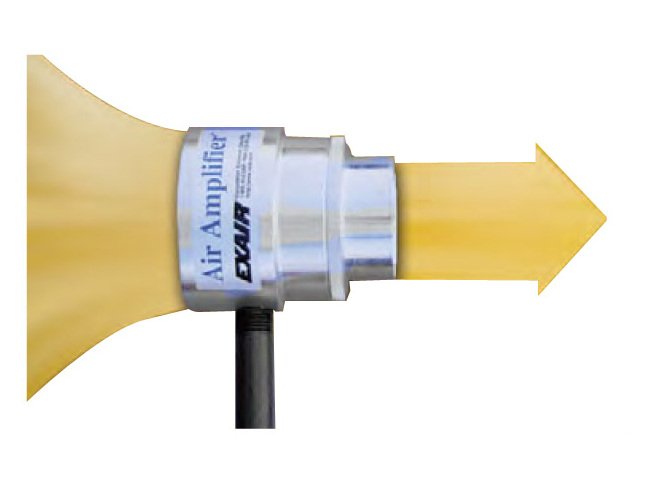

Experience precise airflow control with the Adjustable Air Amplifier featuring an infinitely adjustable air gap, allowing for fine-tuning from a gentle breeze to a powerful blast. Crafted from high-temperature stainless steel, this versatile amplifier is ideal for food service, high-temperature, and corrosive applications. With a noise level of 78 dBA, it offers a sound-efficient solution for a wide range of industrial needs. Enjoy the benefits of compact, lightweight design and easy maintenance, making it a reliable choice for clean machining, heat distribution, fume ventilation, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet
Specifications Air Consumption
8.9 SCFM | 252 SLPM
Specifications Air Volume At 6 In 152 Mm
267 SCFM | 7560 SLPM
Specifications Air Volume At Outlet
89 SCFM | 2520 SLPM
Specifications Amplification
10 Ratio
Specifications Applications
Clean Machined Parts | Cool Hot Parts | Distribute Heat in Molds/Ovens | Dry Wet Parts | Dust Collection | Exhaust Tank Fumes | Vent Welding Smoke | Ventilate Confined Areas
Specifications Corrosive Applications
Yes
Specifications Dimension B
0.75 in | 19 mm
Specifications Dimension E
0.72 in | 18 mm
Specifications Dimension F
0.56 in | 14 mm
Specifications Dimension G
1.06 in | 27 mm
Specifications Dimension H
1.25 in | 32 mm
Specifications Efficiency
Medium
Specifications Flow Adjustment
Infinite (No Shims)
Specifications Inside Diameter
0.45 in | 11 mm
Specifications Material
Stainless Steel
Specifications Mounting Flange
No
Specifications Note
Tested with .002" (0.05 mm) gap.
Specifications Outlet Diameter
3/4 in | 19 mm
Specifications Outside Diameter
1.50 in | 38 mm
Specifications Overall Length
2.22 in | 57 mm
Specifications Overall Width
1.50 in | 38 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
78 dBA
Specifications Temperature Rating
400 ºF | 204 ºC
Specifications Thread Size
1/8 in
Specifications Thread Type
NPT
