Adjustable Air Amplifier - 82 dBA Sound Level, Air Consumption 21.5 SCFM, Stainless Steel
Adjustable Air Amplifier - 82 dBA Sound Level, Air Consumption 21.5 SCFM, Stainless Steel
SKU:ADJ-fb3a30
Regulate air flow from breeze to blast with the 6032 Adjustable Air Amplifier in stainless steel. Compact, efficient, and easy to maintain.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Adjustable Air Amplifier - 82 dBA Sound Level, Air Consumption 21.5 SCFM, Stainless Steel
$299.99
Quantity: 1
Claim Your Seller Account
Adjustable Air Amplifier - 82 dBA Sound Level, Air Consumption 21.5 SCFM, Stainless Steel
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

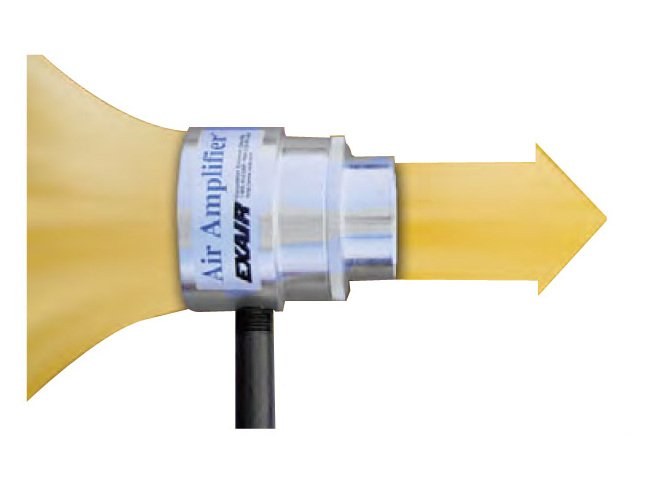

The 6032 Adjustable Air Amplifier offers precise air gap adjustment for regulated consumption and outlet flow, from a gentle breeze to a powerful blast. Crafted in stainless steel, ideal for food service, high temperatures up to 400°F, and corrosive applications. Meeting medium efficiency standards, it enhances operations by offering compact, lightweight, and maintenance-free air amplification, fulfilling OSHA pressure and noise requirements. A versatile solution for various applications like cooling, drying, venting, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet
Specifications Air Consumption
21.5 SCFM | 608 SLPM
Specifications Air Volume At 6 In 152 Mm
1290 SCFM | 36529 SLPM
Specifications Air Volume At Outlet
430 SCFM | 12176 SLPM
Specifications Amplification
20 Ratio
Specifications Applications
Clean Machined Parts | Cool Hot Parts | Distribute Heat in Molds/Ovens | Dry Wet Parts | Dust Collection | Exhaust Tank Fumes | Vent Welding Smoke | Ventilate Confined Areas
Specifications Corrosive Applications
Yes
Specifications Dimension B
2 in | 51 mm
Specifications Dimension E
1.06 in | 27 mm
Specifications Dimension F
0.75 in | 19 mm
Specifications Dimension G
1.50 in | 38 mm
Specifications Dimension H
2.75 in | 70 mm
Specifications Efficiency
Medium
Specifications Flow Adjustment
Infinite (No Shims)
Specifications Inside Diameter
1.64 in | 42 mm
Specifications Material
Stainless Steel
Specifications Mounting Flange
No
Specifications Note
Tested with .002" (0.05 mm) gap.
Specifications Outlet Diameter
2 in | 51 mm
Specifications Outside Diameter
3.13 in | 79 mm
Specifications Overall Length
3.25 in | 83 mm
Specifications Overall Width
3.13 in | 79 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
82 dBA
Specifications Temperature Rating
400 ºF | 204 ºC
Specifications Thread Size
3/8 in
Specifications Thread Type
NPT
