Adjustable Air Amplifier - 82 dBA Sound Level, Infinite Air Gap

Name: Adjustable Air Amplifier - 82 dBA Sound Level, Infinite Air Gap
Brand: Exair LLC
SKU: ADJ-838aac
Price: 199.99 USD
Availability: OutOfStock

SKU:ADJ-838aac

Adjustable Air Amplifier with Infinite Air Gap, 82 dBA Sound Level, Ideal for Various Industrial Applications

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

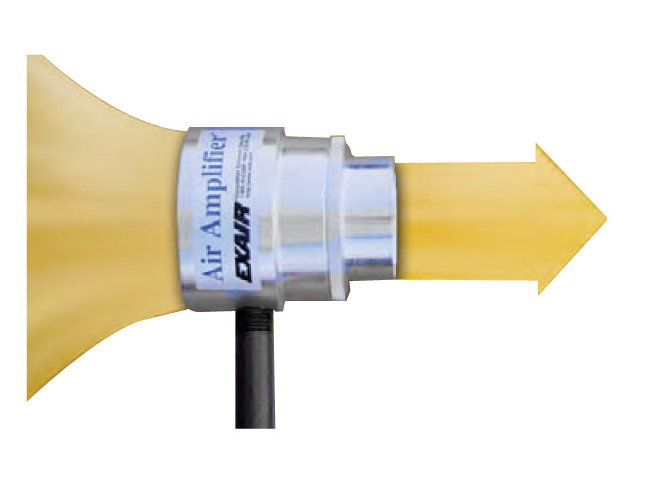

The 6042 Adjustable Air Amplifier is a versatile solution that allows for infinite adjustment of the air gap, regulating airflow from a gentle breeze to a powerful blast. Available in aluminum or high-temperature stainless steel, this amplifier is ideal for various applications including clean machining, heat distribution, and fume ventilation. With a sound level of 82 dBA and airflow amplification ratio of 20, this compact and lightweight device offers superior performance without the need for electricity or maintenance. Meeting OSHA noise and pressure requirements, this amplifier provides quiet, efficient, and adjustable airflow for a wide range of industrial applications.

Product Specifications

Specifications Advantages

Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet

Specifications Air Consumption

21.5 SCFM | 608 SLPM

Specifications Air Volume At 6 In 152 Mm

1290 SCFM | 36529 SLPM

Specifications Air Volume At Outlet

430 SCFM | 12176 SLPM

Specifications Amplification

20 Ratio

Specifications Applications

Specifications Corrosive Applications

Specifications Dimension B

2 in | 51 mm

Specifications Dimension E

1.06 in | 27 mm

Specifications Dimension F

0.75 in | 19 mm

Specifications Dimension G

1.50 in | 38 mm

Specifications Dimension H

2.75 in | 70 mm

Specifications Efficiency

Medium

Specifications Flow Adjustment

Infinite (No Shims)

Specifications Inside Diameter

1.64 in | 42 mm

Specifications Material

Aluminum

Specifications Mounting Flange

Specifications Note

Tested with .002" (0.05 mm) gap.

Specifications Outlet Diameter

2 in | 51 mm

Specifications Outside Diameter

3.13 in | 79 mm

Specifications Overall Length

3.25 in | 83 mm

Specifications Overall Width

3.13 in | 79 mm

Specifications Pressure

80 psig | 5.5 bar

Specifications Sound Level

82 dBA

Specifications Temperature Rating

275 ºF | 135 ºC

Specifications Thread Size

3/8 in

Specifications Thread Type

NPT
