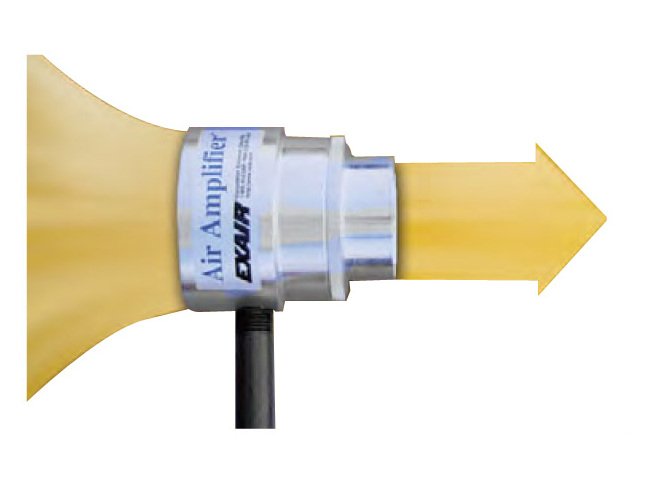

Enhance air control with the 6043 Adjustable Air Amplifier. Easily regulate air from a gentle breeze to a powerful blast with an infinitely adjustable air gap. This industrial-grade amplifier, available in stainless steel for high-temperature and corrosive applications, offers precise airflow control with a sound level of 83 dBA. With features like infinite flow adjustment, compact design, and compliance with OSHA noise requirements, this amplifier is ideal for applications requiring variable force and quiet operation.
Product Specifications
Specifications Advantages
Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet
Specifications Air Consumption
35.2 SCFM | 997 SLPM
Specifications Air Volume At 6 In 152 Mm
2323 SCFM | 65780 SLPM
Specifications Air Volume At Outlet
774 SCFM | 21917 SLPM
Specifications Amplification
22 Ratio
Specifications Applications
Clean Machined Parts | Cool Hot Parts | Distribute Heat in Molds/Ovens | Dry Wet Parts | Dust Collection | Exhaust Tank Fumes | Vent Welding Smoke | Ventilate Confined Areas
Specifications Corrosive Applications
No
Specifications Dimension B
3 in | 76 mm
Specifications Dimension E
1.22 in | 31 mm
Specifications Dimension F
1.25 in | 32 mm
Specifications Dimension G
1.83 in | 46 mm
Specifications Dimension H
3.50 in | 89 mm
Specifications Efficiency
Medium
Specifications Flow Adjustment
Infinite (No Shims)
Specifications Inside Diameter
2.20 in | 56 mm
Specifications Material
Aluminum
Specifications Mounting Flange
No
Specifications Note
Tested with .002" (0.05 mm) gap.
Specifications Outlet Diameter
3 in | 76 mm
Specifications Outside Diameter
4 in | 102 mm
Specifications Overall Length
4.06 in | 103 mm
Specifications Overall Width
4 in | 102 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
83 dBA
Specifications Temperature Rating
275 ºF | 135 ºC
Specifications Thread Size
1/2 in
Specifications Thread Type
NPT
