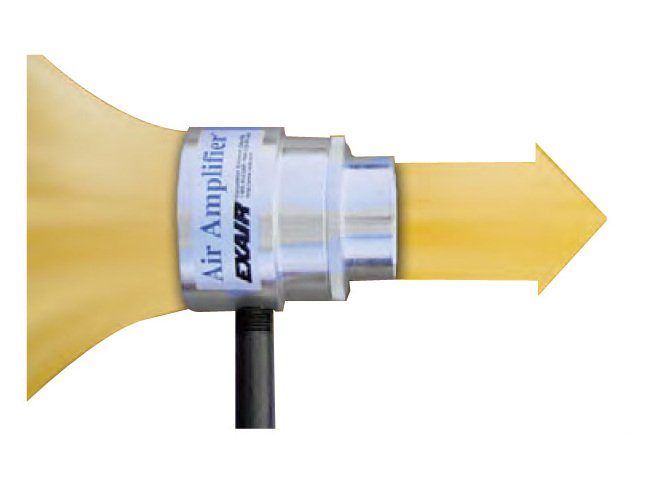

Adjustable Air Amplifier - 83 dBA Sound Level, Stainless Steel

Name: Adjustable Air Amplifier - 83 dBA Sound Level, Stainless Steel
Brand: Exair LLC
SKU: ADJ-317d17
Price: 349.99 USD
Availability: OutOfStock

SKU:ADJ-317d17

Enhance air flow efficiency with the Adjustable Air Amplifier - 83 dBA Sound Level, Stainless Steel for versatile industrial applications.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance air flow efficiency with the Adjustable Air Amplifier featuring a 22 Ratio amplification and infinite flow adjustment capability. Constructed from durable Stainless Steel for food service, high temperatures up to 400°F, and corrosive environments. This versatile amplifier offers compact, maintenance-free operation with multiple applications including heat distribution, dust collection, and fume extraction. Meets OSHA noise requirements and ensures a quiet working environment, ideal for industrial settings.

Product Specifications

Specifications Advantages

Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet

Specifications Air Consumption

35.2 SCFM | 997 SLPM

Specifications Air Volume At 6 In 152 Mm

2323 SCFM | 65780 SLPM

Specifications Air Volume At Outlet

774 SCFM | 21917 SLPM

Specifications Amplification

22 Ratio

Specifications Applications

Specifications Corrosive Applications

Yes

Specifications Dimension B

3 in | 76 mm

Specifications Dimension E

1.22 in | 31 mm

Specifications Dimension F

1.25 in | 32 mm

Specifications Dimension G

1.83 in | 46 mm

Specifications Dimension H

3.50 in | 89 mm

Specifications Efficiency

Medium

Specifications Flow Adjustment

Infinite (No Shims)

Specifications Inside Diameter

2.20 in | 56 mm

Specifications Material

Stainless Steel

Specifications Mounting Flange

Specifications Note

Tested with .002" (0.05 mm) gap.

Specifications Outlet Diameter

3 in | 76 mm

Specifications Outside Diameter

4 in | 102 mm

Specifications Overall Length

4.06 in | 103 mm

Specifications Overall Width

4 in | 102 mm

Specifications Pressure

80 psig | 5.5 bar

Specifications Sound Level

83 dBA

Specifications Temperature Rating

400 ºF | 204 ºC

Specifications Thread Size

1/2 in

Specifications Thread Type

NPT

Adjustable Air Amplifier - 83 dBA Sound Level, Stainless Steel
