Adjustable Air Amplifier - 84 dBA Sound Level | 24:1 Amplification

Name: Adjustable Air Amplifier - 84 dBA Sound Level | 24:1 Amplification
Brand: Exair LLC
SKU: ADJ-6b3918
Price: 299.99 USD
Availability: OutOfStock

SKU:ADJ-6b3918

Adjustable Air Amplifier with 84 dBA Sound Level, 24:1 Amplification Ratio. Ideal for precise airflow control in various applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

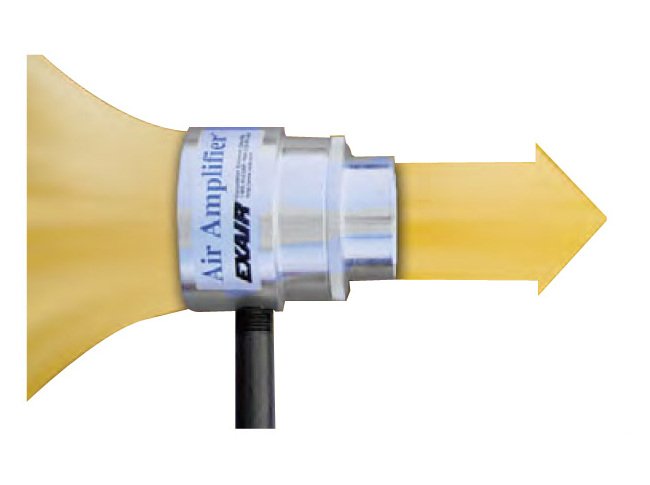

The 6044 Adjustable Air Amplifier offers precise air regulation from a gentle breeze to a powerful blast. Constructed in aluminum, it can be upgraded to stainless steel for food service, high temperatures (up to 400°F), and corrosive environments. With infinite airflow adjustment, this amplifier provides a sound level of 84 dBA and amplification ratio of 24:1. Ideal for various applications including cooling hot parts, cleaning machined parts, and more, it outperforms fans and venturis by offering portability, minimal maintenance, and compliance with OSHA noise requirements.

Product Specifications

Specifications Advantages

Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet

Specifications Air Consumption

50 SCFM | 1416 SLPM

Specifications Air Volume At 6 In 152 Mm

3600 SCFM | 101941 SLPM

Specifications Air Volume At Outlet

1200 SCFM | 33980 SLPM

Specifications Amplification

24 Ratio

Specifications Applications

Specifications Corrosive Applications

Specifications Dimension B

4 in | 102 mm

Specifications Dimension E

1.50 in | 38 mm

Specifications Dimension F

1.75 in | 44 mm

Specifications Dimension G

2.13 in | 54 mm

Specifications Dimension H

4.50 in | 114 mm

Specifications Efficiency

Medium

Specifications Flow Adjustment

Infinite (No Shims)

Specifications Inside Diameter

3.02 in | 77 mm

Specifications Material

Aluminum

Specifications Mounting Flange

Specifications Note

Tested with .002" (0.05 mm) gap.

Specifications Outlet Diameter

4 in | 102 mm

Specifications Outside Diameter

5 in | 127 mm

Specifications Overall Length

5.00 in | 127 mm

Specifications Overall Width

5 in | 127 mm

Specifications Pressure

80 psig | 5.5 bar

Specifications Sound Level

84 dBA

Specifications Temperature Rating

275 ºF | 135 ºC

Specifications Thread Size

1/2 in

Specifications Thread Type

NPT
