Adjustable Air Amplifier - 84 dBA Sound Level Air Amplifier
Adjustable Air Amplifier - 84 dBA Sound Level Air Amplifier
SKU:ADJ-78421a
Regulate air flow effortlessly with the Adjustable Air Amplifier - ideal for diverse applications, from gentle airflow to powerful blasts.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Adjustable Air Amplifier - 84 dBA Sound Level Air Amplifier
$299.99
Quantity: 1
Claim Your Seller Account
Adjustable Air Amplifier - 84 dBA Sound Level Air Amplifier
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

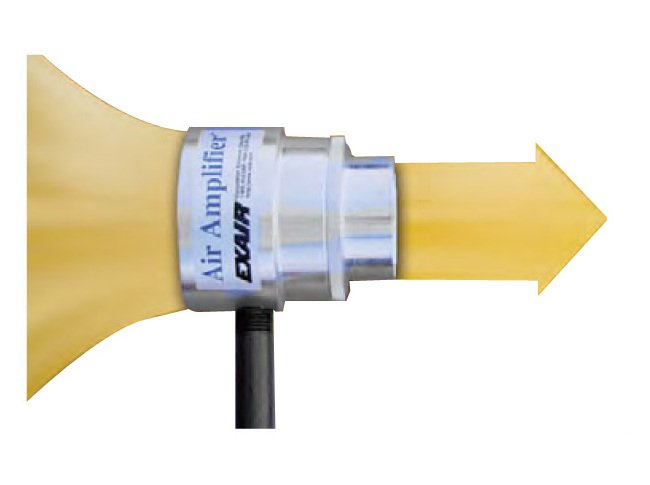

The 6034 - 84 dBA Sound Level Adjustable Air Amplifier offers precise air flow regulation from a gentle breeze to a powerful blast. Crafted from durable stainless steel, it is ideal for food service, high temperatures up to 400°F, and corrosive environments. With infinite airflow adjustment, this amplifier produces 24x amplification, delivering up to 3600 SCFM air volume at 6 inches. Compact, maintenance-free, and noise-efficient at 84 dBA, this versatile device is perfect for clean machining, heat distribution, fume ventilation, and more, meeting OSHA requirements and ensuring a quiet, efficient operation.
Product Specifications
Specifications Advantages
Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet
Specifications Air Consumption
50 SCFM | 1416 SLPM
Specifications Air Volume At 6 In 152 Mm
3600 SCFM | 101941 SLPM
Specifications Air Volume At Outlet
1200 SCFM | 33980 SLPM
Specifications Amplification
24 Ratio
Specifications Applications
Clean Machined Parts | Cool Hot Parts | Distribute Heat in Molds/Ovens | Dry Wet Parts | Dust Collection | Exhaust Tank Fumes | Vent Welding Smoke | Ventilate Confined Areas
Specifications Corrosive Applications
Yes
Specifications Dimension B
4 in | 102 mm
Specifications Dimension E
1.50 in | 38 mm
Specifications Dimension F
1.75 in | 44 mm
Specifications Dimension G
2.13 in | 54 mm
Specifications Dimension H
4.50 in | 114 mm
Specifications Efficiency
Medium
Specifications Flow Adjustment
Infinite (No Shims)
Specifications Inside Diameter
3.02 in | 77 mm
Specifications Material
Stainless Steel
Specifications Mounting Flange
No
Specifications Note
Tested with .002" (0.05 mm) gap.
Specifications Outlet Diameter
4 in | 102 mm
Specifications Outside Diameter
5 in | 127 mm
Specifications Overall Length
5.00 in | 127 mm
Specifications Overall Width
5 in | 127 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
84 dBA
Specifications Temperature Rating
400 ºF | 204 ºC
Specifications Thread Size
1/2 in
Specifications Thread Type
NPT
