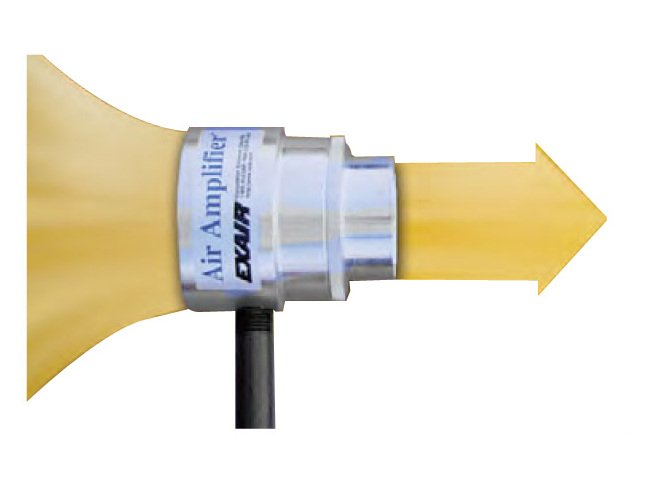

Adjustable Air Amplifier with 78 dBA Sound Level
Adjustable Air Amplifier with 78 dBA Sound Level
SKU:ADJ-4c9d1f
Enhance airflow with our Adjustable Air Amplifier for precise control from gentle breeze to powerful blast. Aluminum build, 78 dBA sound level, optimum for various applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Adjustable Air Amplifier with 78 dBA Sound Level
$199.99
Quantity: 1
Claim Your Seller Account
Adjustable Air Amplifier with 78 dBA Sound Level
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your airflow control with our Adjustable Air Amplifier featuring a 78 dBA sound level and infinite adjustability for regulating air consumption. Available in aluminum or stainless steel for diverse applications, this amplifier offers precise force and flow adjustments from a gentle breeze to a powerful blast. With a temperature rating of 275 ºF and compact, maintenance-free design, it outperforms traditional ventilation systems with higher efficiency and compliance with OSHA noise requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet
Specifications Air Consumption
8.9 SCFM | 252 SLPM
Specifications Air Volume At 6 In 152 Mm
267 SCFM | 7560 SLPM
Specifications Air Volume At Outlet
89 SCFM | 2520 SLPM
Specifications Amplification
10 Ratio
Specifications Applications
Clean Machined Parts | Cool Hot Parts | Distribute Heat in Molds/Ovens | Dry Wet Parts | Dust Collection | Exhaust Tank Fumes | Vent Welding Smoke | Ventilate Confined Areas
Specifications Corrosive Applications
No
Specifications Dimension B
0.75 in | 19 mm
Specifications Dimension E
0.72 in | 18 mm
Specifications Dimension F
0.56 in | 14 mm
Specifications Dimension G
1.06 in | 27 mm
Specifications Dimension H
1.25 in | 32 mm
Specifications Efficiency
Medium
Specifications Flow Adjustment
Infinite (No Shims)
Specifications Inside Diameter
0.45 in | 11 mm
Specifications Material
Aluminum
Specifications Mounting Flange
No
Specifications Note
Tested with .002" (0.05 mm) gap.
Specifications Outlet Diameter
3/4 in | 19 mm
Specifications Outside Diameter
1.50 in | 38 mm
Specifications Overall Length
2.22 in | 57 mm
Specifications Overall Width
1.50 in | 38 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
78 dBA
Specifications Temperature Rating
275 ºF | 135 ºC
Specifications Thread Size
1/8 in
Specifications Thread Type
NPT
