Adjustable Air Amplifier with 81 dBA Sound Level Control
Adjustable Air Amplifier with 81 dBA Sound Level Control
SKU:ADJ-58ee27
Regulate airflow from gentle breeze to powerful blast with our Adjustable Air Amplifier. Compact, efficient, and versatile for various institutional applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Adjustable Air Amplifier with 81 dBA Sound Level Control
$299.99
Quantity: 1
Claim Your Seller Account
Adjustable Air Amplifier with 81 dBA Sound Level Control
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

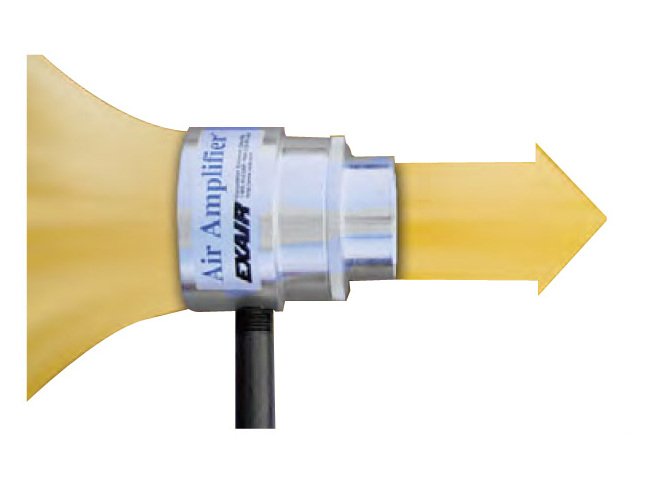

Enhance air regulation from a gentle breeze to a powerful blast with the Adjustable Air Amplifier. Available in aluminum or stainless steel for various applications, this device offers efficient control with an infinite air gap adjustment. With dimensions tailored for precision, this product delivers amplified airflow while maintaining a sound level of 81 dBA. Its compact design, lack of moving parts, and versatility make it ideal for applications like clean part cooling, fume extraction, and confined space ventilation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet
Specifications Air Consumption
12.9 SCFM | 365 SLPM
Specifications Air Volume At 6 In 152 Mm
618 SCFM | 17500 SLPM
Specifications Air Volume At Outlet
206 SCFM | 5833 SLPM
Specifications Amplification
16 Ratio
Specifications Applications
Clean Machined Parts | Cool Hot Parts | Distribute Heat in Molds/Ovens | Dry Wet Parts | Dust Collection | Exhaust Tank Fumes | Vent Welding Smoke | Ventilate Confined Areas
Specifications Corrosive Applications
No
Specifications Dimension B
1.25 in | 32 mm
Specifications Dimension E
1 in | 25 mm
Specifications Dimension F
0.75 in | 19 mm
Specifications Dimension G
1.38 in | 35 mm
Specifications Dimension H
1.75 in | 44 mm
Specifications Efficiency
Medium
Specifications Flow Adjustment
Infinite (No Shims)
Specifications Inside Diameter
0.84 in | 21 mm
Specifications Material
Aluminum
Specifications Mounting Flange
No
Specifications Note
Tested with .002" (0.05 mm) gap.
Specifications Outlet Diameter
1-1/4 in | 32 mm
Specifications Outside Diameter
2 in | 51 mm
Specifications Overall Length
2.88 in | 73 mm
Specifications Overall Width
2 in | 51 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
81 dBA
Specifications Temperature Rating
275 ºF | 135 ºC
Specifications Thread Size
1/4 in
Specifications Thread Type
NPT
