Adjustable Bayonet Style Plastic Thermocouples with RTD's - Acrolab A500/A510 Series

Name: Adjustable Bayonet Style Plastic Thermocouples with RTD's - Acrolab A500/A510 Series
Brand: Acrolab Ltd.
SKU: THE-81a8ab
Price: 99.99 USD
Availability: OutOfStock

SKU:THE-81a8ab

Acrolab A500/A510 Series - Adjustable bayonet style thermocouples and RTD's for quick installations. ISO 9001:2015 certified.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

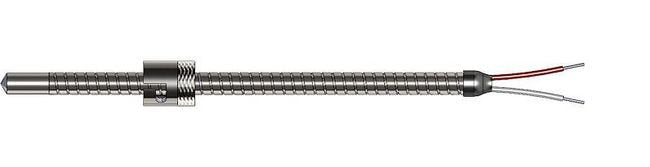

Experience seamless installation and disconnection with Acrolab's adjustable bayonet style plastic thermocouples and RTD's. These high-quality sensors feature SS armor for full adjustability along their 12" spring, catering to quick application needs. Offered in various calibration types and junction styles, with optional terminations and special constructions, these thermocouples meet ISO 9001:2015 standards for superior reliability and performance.

Product Specifications

Specifications Calibration Type

Specifications Certifications

International Organization for Standardization (ISO 9001: 2015)

Specifications Junction Styles

Dual | Single

Specifications Length B

Specify

Specifications Options

29 - 1/8" Diameter Tip | 39 - 3/16" Diameter Tip | 99 - Fiberglass Wire without Stainless Steel Overbraid (A510 Only) | AA - Special Construction | U - Ungrounded (3/16" OD Standard)

Specifications Probe Configuration

Bayonet

Specifications Spring Size

12 in

Specifications Termination Type

0 - Leads Not Stripped | 1 - Standard Male Plug | 2 - Standard Female Jack | 3 - BX Connector and 4" Stripped Leads with Spade Lugs | 4 - 4" Stripped Leads with Spade Lugs

Specifications Thermocouple Design

Adjustable

Specifications Thermocouple Style

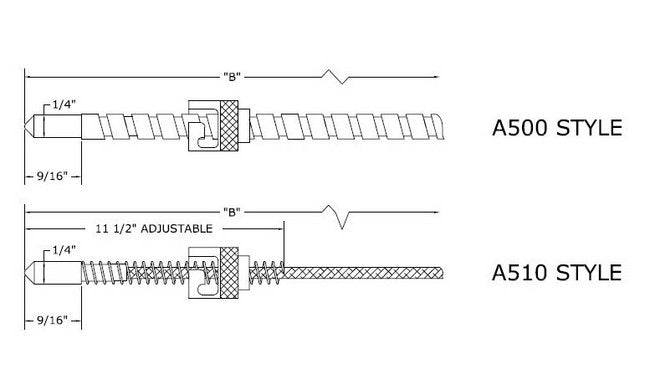

A500 - Armored Adjustable Bayonet Style | A510 - Spring Adjustable Bayonet Style
