Adjustable Carbon Steel Clevis Hanger - Pipe & Tube Suspension Solution

Name: Adjustable Carbon Steel Clevis Hanger - Pipe & Tube Suspension Solution
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-3eb5b9
Price: 29.99 USD
Availability: OutOfStock

SKU:PIP-3eb5b9

Adjustable Clevis Hanger - Durable carbon steel construction, versatile vertical adjustment, complies with Federal standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

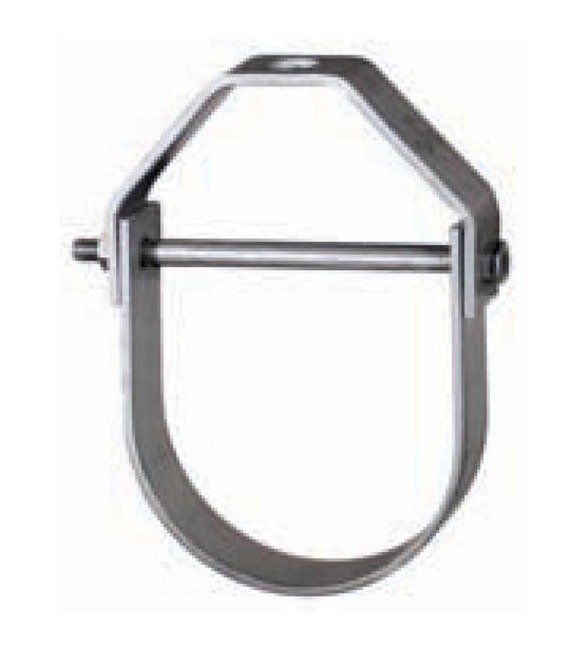

Our Adjustable Carbon Steel Clevis Hanger is a versatile solution for suspending stationary pipe lines. Made from durable carbon steel and available in various finishes including epoxy coated and galvanized, this hanger offers a maximum load capacity of 610 lbs. Designed for easy vertical adjustment without pipe removal, it complies with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards. Featuring a unique yoke design to minimize bolt bending, it guarantees secure pipe suspension and structural integrity. Ensure proper installation by tightening the hanger load nut securely and enjoy the convenience of vertical adjustment up to 5 1/8 inches.

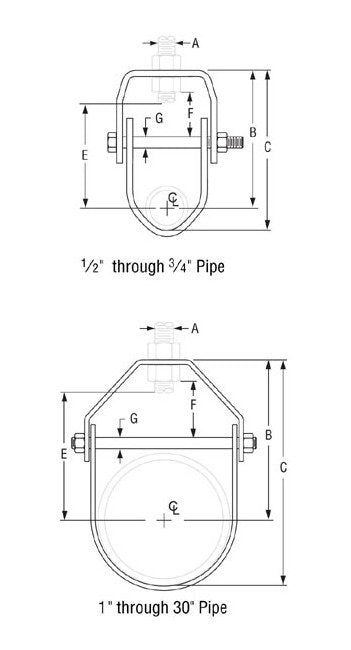

Product Specifications

Specifications Adjustment F

5/8 inches

Specifications Dimension B

2 3/16 inches

Specifications Dimension C

2 11/16 inches

Specifications Dimension G

1/4 inches

Specifications Finish

Epoxy Coated | Galvanized | Plain | Plastic Coated

Specifications Material

Carbon Steel

Specifications Maximum Load

610 lbs

Specifications Maximum Temperature Galvanized And Epoxy

450 Â°F

Specifications Maximum Temperature Plain

650 Â°F

Specifications Pipe Size

1/2 inches

Specifications Rod Size A

3/8 inches

Specifications Rod Take Out E

1 1/2 inches

Specifications Span

7 ft.

Specifications Weight

0.34 lbs

Adjustable Carbon Steel Clevis Hanger - Pipe & Tube Suspension Solution
