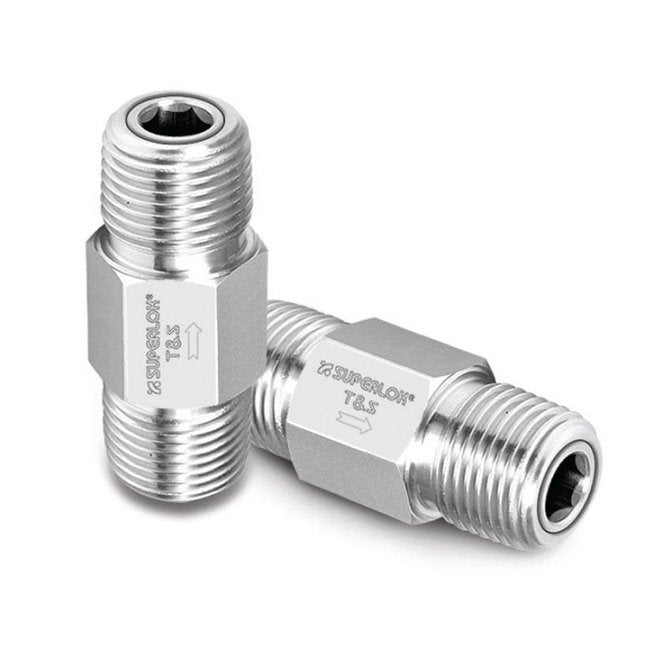

The SOACV Series 75.7mm FNPT One-Piece Adjustable Check Valve offers a versatile solution for fluid control applications. With a cracking pressure range of 0.2 to 600 bar and a maximum working pressure of 3000 psig, this valve ensures reliable performance. Constructed with 316 stainless steel or brass body, and featuring NPT and ISO pipe end connections, it guarantees durability and leak-free operation. Each valve undergoes rigorous testing for cracking pressure and reseal performance, meeting quality standards for flawless functionality.
Product Specifications
Features Features
One-piece BodyNPT and ISO pipe end connections in 1/4 and 1/2 in. sizes316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Cracking Pressure Range
0.2 to 3.4 bar | 10.3 to 24.1 bar | 150 to 350 bar | 24.1 to 41.3 bar | 3 to 50 bar | 3.4 to 10.3 bar | 350 to 600 bar | 50 to 150 bar

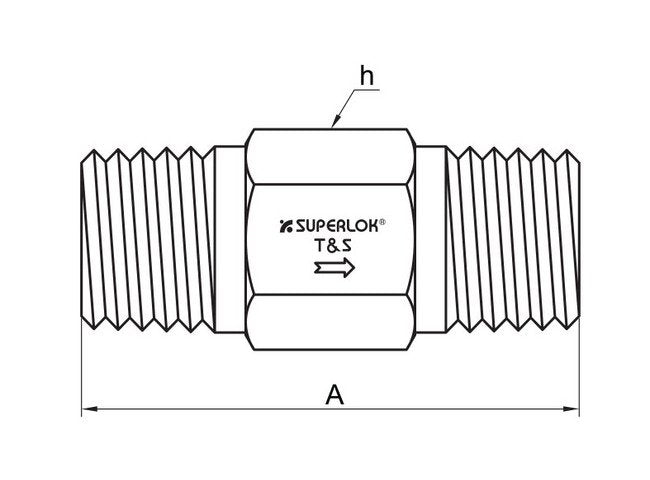

Technical Specs Dimension A
75.7 mm
Technical Specs End Connection
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
0.35
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Hex H
19.1 mm | 3/4 in
Technical Specs Maximum Working Pressure At 70 Degree Fahrenheit
3000 psig | 206 bar
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
