The SACV Series 82.0mm Dimension A and 14.3mm Dimension H Adjustable Check Valve offers a versatile solution for precise pressure control. With a cracking pressure range of 0.2 to 600 bar, this valve is suitable for a wide range of applications. Made from high-quality materials like 316 Stainless Steel and featuring Fluorocarbon and Nitrile Butadiene Rubber O-Ring options, it ensures durability and reliability. Tested for cracking pressure and reseal performance, this valve meets stringent industry standards.
Product Specifications
Features Features
Variety of end connections316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Cracking Pressure Range
0.2 to 3.4 bar | 10.3 to 24.1 bar | 150 to 350 bar | 24.1 to 41.3 bar | 3 to 50 bar | 3.4 to 10.3 bar | 350 to 600 bar | 50 to 150 bar

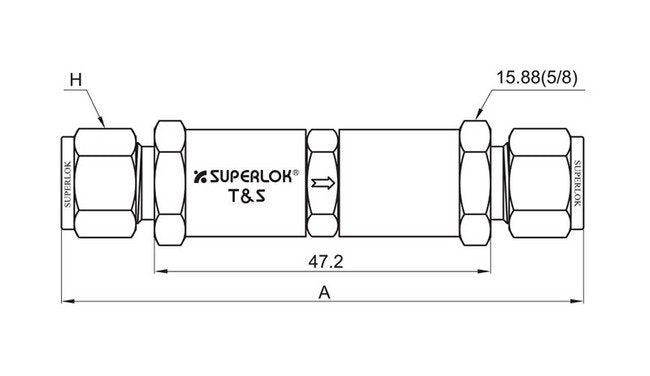

Technical Specs Dimension A
82.0 mm
Technical Specs Dimension H
9/16 mm | 14.3 mm
Technical Specs Flow Coefficients Cv
0.37
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Inlet End Connections
1/4 in. SUPERLOK®
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Outlet End Connections
1/4 in. SUPERLOK®
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
Technical Specs Working And Back Pressure At 70 Degree Fahrenhei
3000 psig | 206 bar
