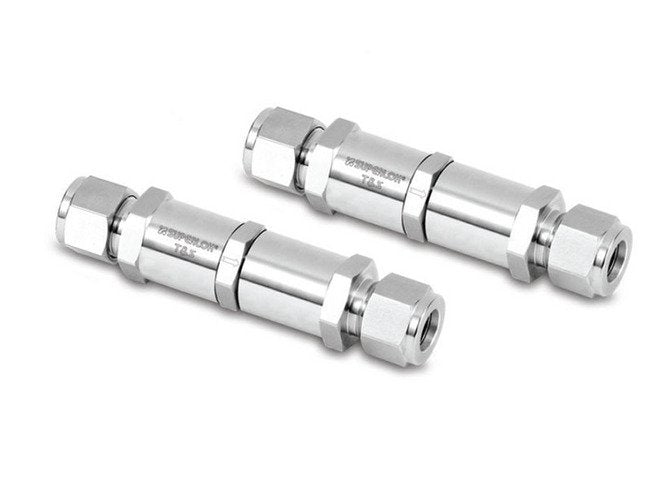

Adjustable Check Valve - SACV Series 82.0mm Dimension A
Adjustable Check Valve - SACV Series 82.0mm Dimension A
SKU:SAC-224c0e
High-performance SACV Series Check Valve for precise flow control in diverse applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Adjustable Check Valve - SACV Series 82.0mm Dimension A
$129.99
Quantity: 1
Claim Your Seller Account
Adjustable Check Valve - SACV Series 82.0mm Dimension A
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SACV Series Adjustable Check Valve offers a Cracking Pressure Range of 0.2 to 600 bar, ensuring precise control. With 316 stainless steel body, FKM and NBR O-Ring options, and various end connections, it meets rigorous testing standards. Ideal for applications requiring reliability and flexibility.
Product Specifications
Features Features
Variety of end connections316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note

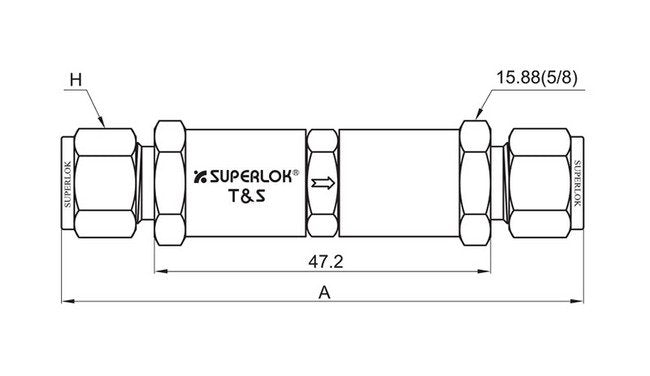

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Cracking Pressure Range
0.2 to 3.4 bar | 10.3 to 24.1 bar | 150 to 350 bar | 24.1 to 41.3 bar | 3 to 50 bar | 3.4 to 10.3 bar | 350 to 600 bar | 50 to 150 bar
Technical Specs Dimension A
82.0 mm
Technical Specs Dimension H
14 mm
Technical Specs Flow Coefficients Cv
0.37
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Inlet End Connections
6 mm Superlok®
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Outlet End Connections
7 mm SUPERLOK®
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
Technical Specs Working And Back Pressure At 70 Degree Fahrenhei
3000 psig | 206 bar
