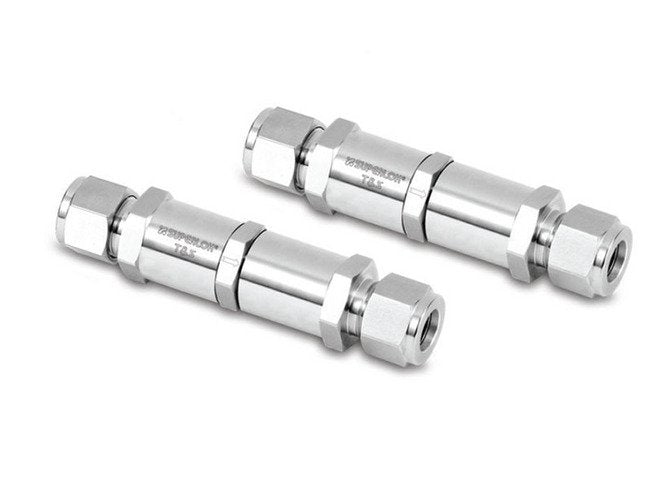

Adjustable Check Valve - SACV Series 84.3mm Dimension A, 16mm Dimension H
Adjustable Check Valve - SACV Series 84.3mm Dimension A, 16mm Dimension H
SKU:SAC-aa76ed
Enhance flow control with the SACV Series Adjustable Check Valve. Durable, reliable, and tested for performance, it meets strict industry standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Adjustable Check Valve - SACV Series 84.3mm Dimension A, 16mm Dimension H
$129.99
Quantity: 1
Claim Your Seller Account
Adjustable Check Valve - SACV Series 84.3mm Dimension A, 16mm Dimension H
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SACV Series Adjustable Check Valve offers a versatile solution for precise flow control in industrial settings. Featuring a cracking pressure range of 0.2 to 600 bar, this valve ensures efficient performance under varying pressures. With a 316 stainless steel body and a choice of FKM or NBR seal material, it guarantees durability and reliability. Tested for cracking pressure and reseal performance, this valve meets stringent quality standards, making it ideal for government and institutional procurement needs.
Product Specifications
Features Features
Variety of end connections316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Cracking Pressure Range
0.2 to 3.4 bar | 10.3 to 24.1 bar | 150 to 350 bar | 24.1 to 41.3 bar | 3 to 50 bar | 3.4 to 10.3 bar | 350 to 600 bar | 50 to 150 bar

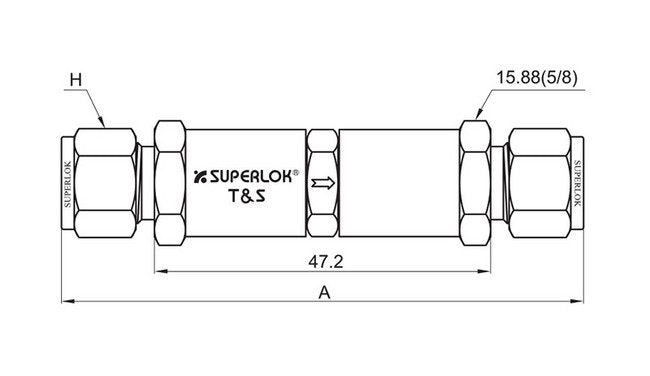

Technical Specs Dimension A
84.3 mm
Technical Specs Dimension H
16 mm
Technical Specs Flow Coefficients Cv
0.37
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Inlet End Connections
8 mm Superlok®
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Outlet End Connections
9 mm SUPERLOK®
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
Technical Specs Working And Back Pressure At 70 Degree Fahrenhei
3000 psig | 206 bar
