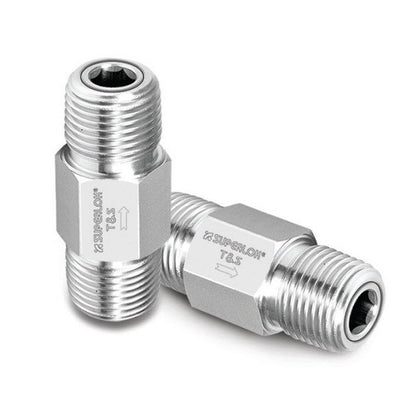

The SOACV Series 41.1mm Dimension A Male International Organization for Standardization (MISO) Adjustable Check Valve is a top-of-the-line solution for precise pressure control. With a cracking pressure range of 0.2 to 600 bar, this valve ensures reliable performance in various applications. Made of durable 316 Stainless Steel or Brass, it guarantees longevity and high corrosion resistance. Each valve undergoes rigorous testing at the factory to ensure optimal cracking pressure and reseal performance, meeting the highest industry standards.
Product Specifications
Features Features
One-piece BodyNPT and ISO pipe end connections in 1/4 and 1/2 in. sizes316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Cracking Pressure Range
0.2 to 3.4 bar | 10.3 to 24.1 bar | 150 to 350 bar | 24.1 to 41.3 bar | 3 to 50 bar | 3.4 to 10.3 bar | 350 to 600 bar | 50 to 150 bar

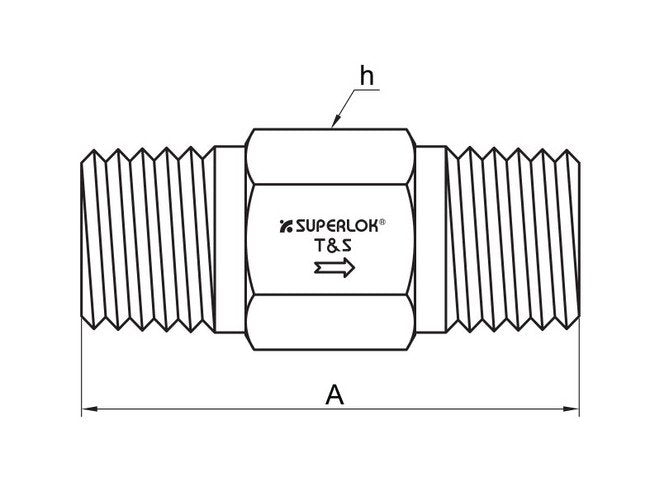

Technical Specs Dimension A
41.1 mm
Technical Specs End Connection
1/4 in. Male International Organization for Standardization (ISO)
Technical Specs Flow Coefficients Cv
0.35
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Hex H
14.3 mm | 9/16 in
Technical Specs Maximum Working Pressure At 70 Degree Fahrenheit
3000 psig | 206 bar
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
