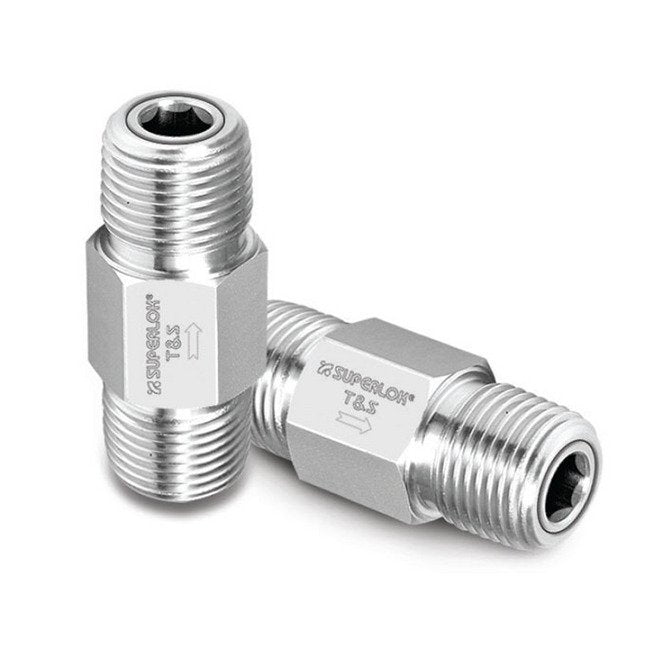

Adjustable Check Valve - SOACV Series 65.0mm Male ISO One-Piece
Adjustable Check Valve - SOACV Series 65.0mm Male ISO One-Piece
SKU:SOA-9d36b7
Optimize flow control with the SOACV Series 65.0mm Adjustable Check Valve. Durable, precise, and temperature-resistant for industrial needs.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Adjustable Check Valve - SOACV Series 65.0mm Male ISO One-Piece
$89.99
Quantity: 1
Claim Your Seller Account
Adjustable Check Valve - SOACV Series 65.0mm Male ISO One-Piece
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SOACV Series 65.0mm Dimension A Male ISO One-Piece Adjustable Check Valve is a top-notch solution for regulating flow in various settings. With a cracking pressure range from 0.2 to 600 bar, it offers precise control. Made of 316 Stainless Steel or Brass, it ensures durability. The valve's Fluorocarbon (FKM) & Nitrile Butadiene Rubber (NBR) O-Rings guarantee temperature resilience. Tested for cracking pressure and reseal performance, this valve excels in reliability and efficiency.
Product Specifications
Features Features
One-piece BodyNPT and ISO pipe end connections in 1/4 and 1/2 in. sizes316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Cracking Pressure Range
0.2 to 3.4 bar | 10.3 to 24.1 bar | 150 to 350 bar | 24.1 to 41.3 bar | 3 to 50 bar | 3.4 to 10.3 bar | 350 to 600 bar | 50 to 150 bar

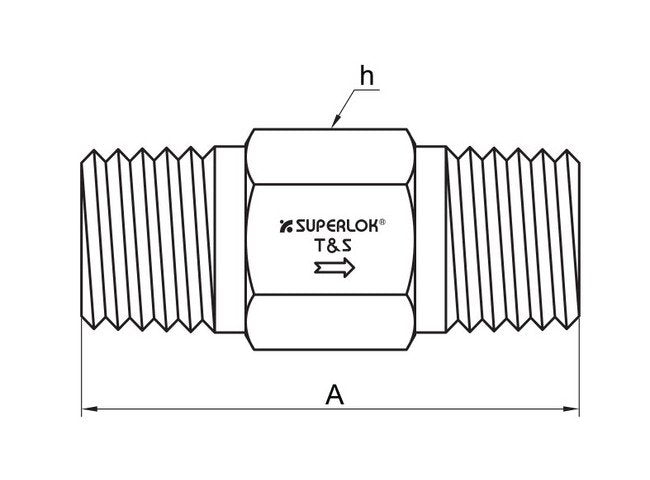

Technical Specs Dimension A
65.0 mm
Technical Specs End Connection
1/2 in. Male International Organization for Standardization (ISO)
Technical Specs Flow Coefficients Cv
1.20
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Hex H
22.2 mm | 7/8 in
Technical Specs Maximum Working Pressure At 70 Degree Fahrenheit
3000 psig | 206 bar
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
