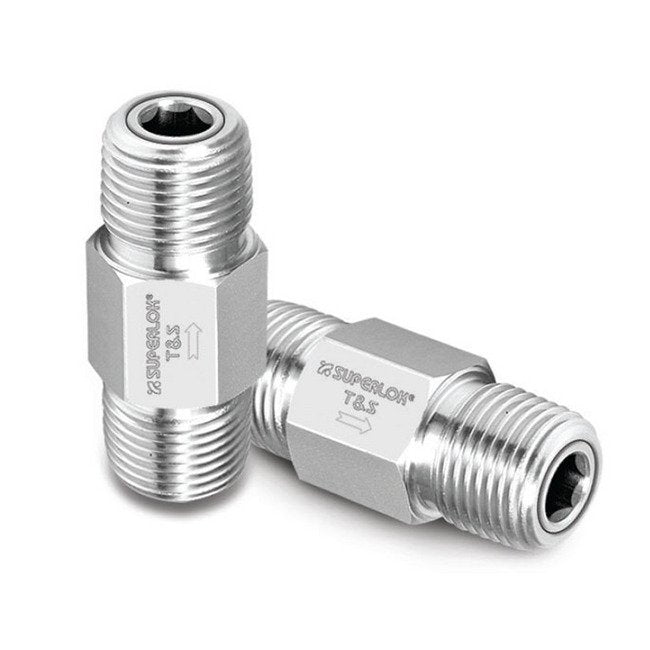

The SOACV Series 65.0mm Dimension A Male National Pipe Thread (MNPT) One-Piece Adjustable Check Valve is engineered for exceptional performance in various applications. With a cracking pressure range of 0.2 to 600 bar, this valve ensures precise flow control. Its 316 stainless steel body and choice of FKM or NBR O-Ring seals guarantee durability and reliable sealing. Tested for cracking pressure and reseal performance, this valve meets rigorous quality standards, making it ideal for both consumer and institutional buyers.
Product Specifications
Features Features
One-piece BodyNPT and ISO pipe end connections in 1/4 and 1/2 in. sizes316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory
Note Note

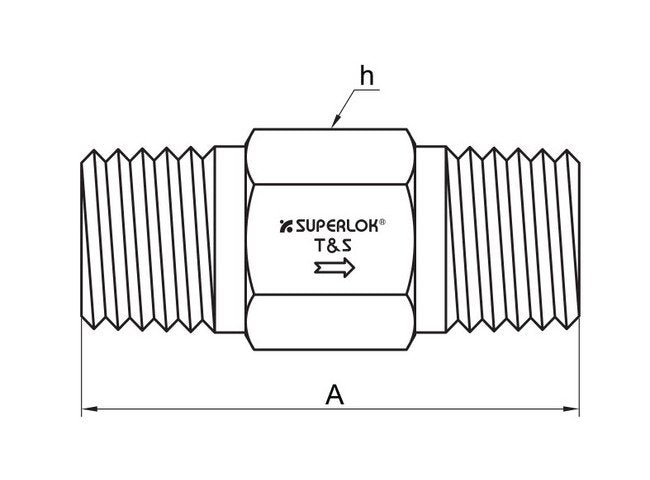

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Cracking Pressure Range
0.2 to 3.4 bar | 10.3 to 24.1 bar | 150 to 350 bar | 24.1 to 41.3 bar | 3 to 50 bar | 3.4 to 10.3 bar | 350 to 600 bar | 50 to 150 bar
Technical Specs Dimension A
65.0 mm
Technical Specs End Connection
1/2 in. Male National Pipe Thread (MNPT)
Technical Specs Flow Coefficients Cv
1.20
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Hex H
22.2 mm | 7/8 in
Technical Specs Maximum Working Pressure At 70 Degree Fahrenheit
3000 psig | 206 bar
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
